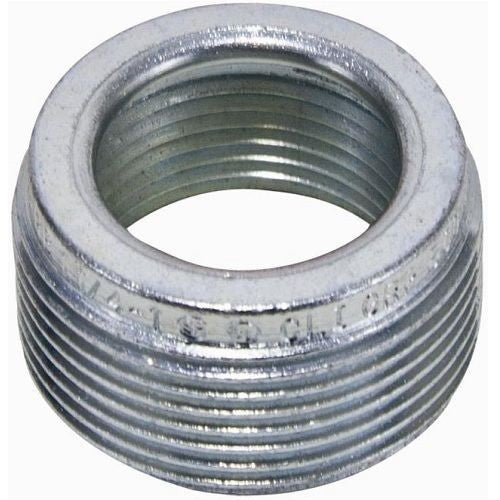

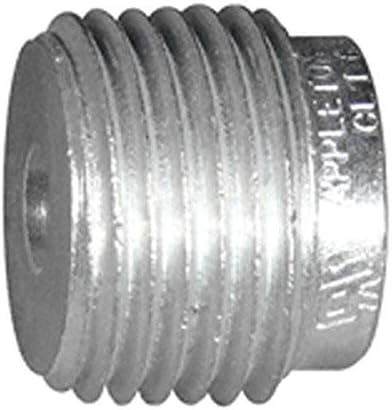

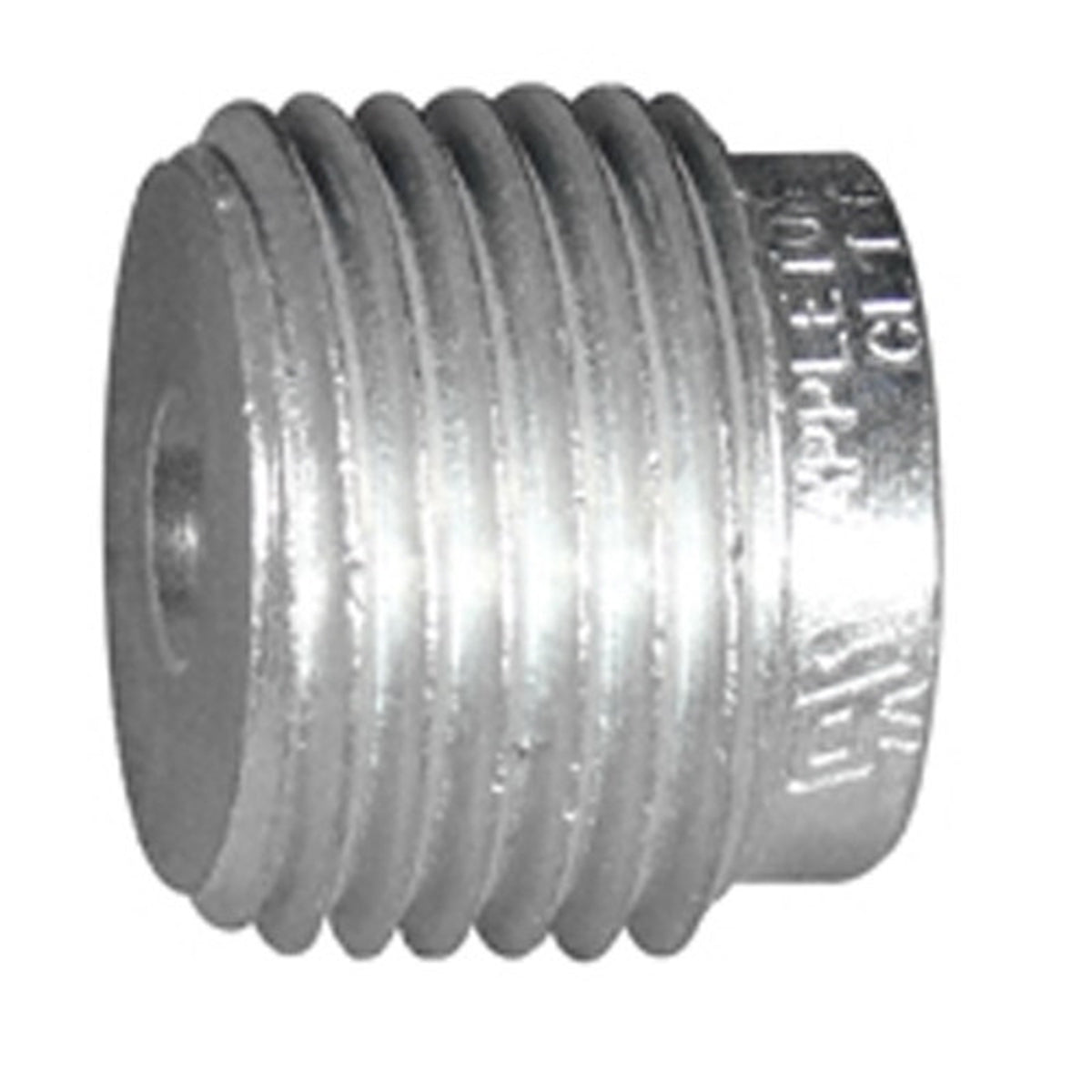

Appleton RB250-125 Reducing Bushing 2-1/2 x 1-1/4 inch

Product Description

The APPLETON RB250-125 reducing bushing is designed to reduce conduit entries to a smaller size in threaded rigid and IMC conduit systems. Constructed of steel with a zinc electroplate finish. It is suitable for use with rigid/IMC conduit.

• Protects conductor insulation
• Full, machined tapered threads
• CSA certified

Product Highlights

The APPLETON reducing bushing has smooth rounded integral bushing that protects conductor insulation. Full machine tapered threads (NPT).

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: RB250-125
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: RB250-125
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• Application: For Reducing Conduit Entries To A Smaller Size In Threaded Rigid And IMC Conduit Systems
• Connection: NPT
• Finish: Zinc Electroplate
• Material: Steel
• Special Features: Smooth rounded integral bushing protects conductor insulation
• Standard: Class I: Groups A, B, C, D, Class II: Groups E, F, G, Class III, UL 886 (1203), UL E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181
• RoHS Indicator: No
• Item Type: Reducing Bushing
• Size: 2-1/2 X 1-1/4
• Series: RB Series
• Trade Size: 2-1/2 x 1-1/4 in
• Diameter: 1 1/4 in, 2 1/2 in
• Part #: RB250125
• Category: Bushing
• UPC: DOES NOT APPLY
• Standards: California Proposition 65
• Type: Threaded
• Conduit Size: 2-1/2 - 1-1/4 in
