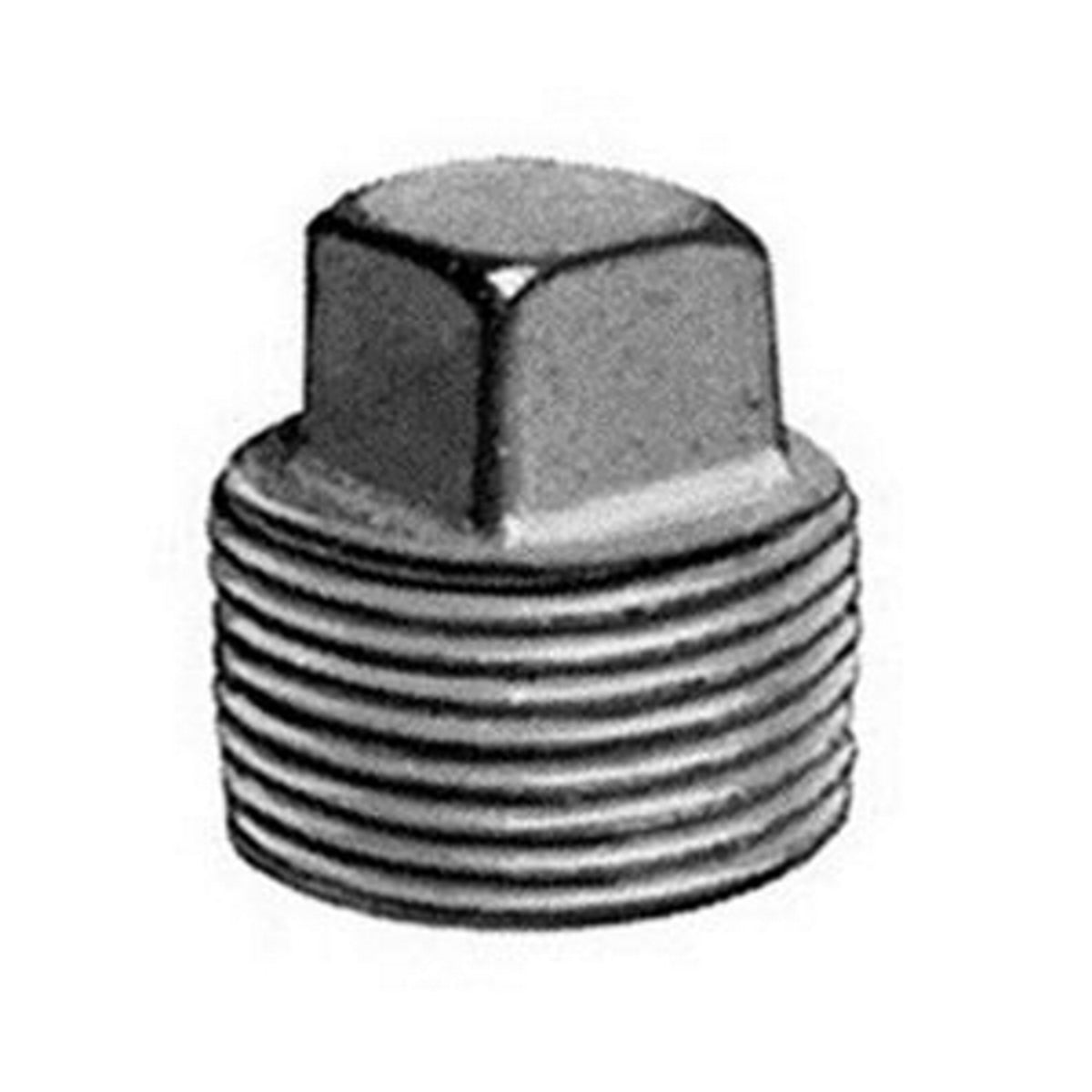

Appleton PLG-50S 1/2 Square Head Close-Up Plug

Product Description

Appleton PLG-50S is a square head close-up plug made of steel. It is designed for closing threaded conduit openings in various applications. The plug is explosionproof and dust-ignitionproof, providing reliable performance in tough environments. It is compatible with threaded rigid metal conduit and IMC.

• Explosionproof and dust-ignitionproof
• Materials: Steel with electro zinc plating
• Tapered MNPT connection type for secure fittings

Product Highlights

This product is suitable for use in hazardous environments, ensuring safety and reliability.

Product Information

Standard Information

• Brand: Appleton
• MPN: PLG-50S

Technical Specifications

• Type: Square Head, Explosionproof, Dust-Ignitionproof
• Size: 1/2 inch
• Material: Steel
• Finish: Electro Zinc Plated
• Application: For use with threaded rigid metal conduit and IMC
• Connection: Tapered MNPT
• Standards: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 25 and 30
• UPC: 781381651905
• Weight: 0.120 pounds
• Dimensions: Length - 5.6 inches, Width - 5.4 inches, Height - 0.068 inches
