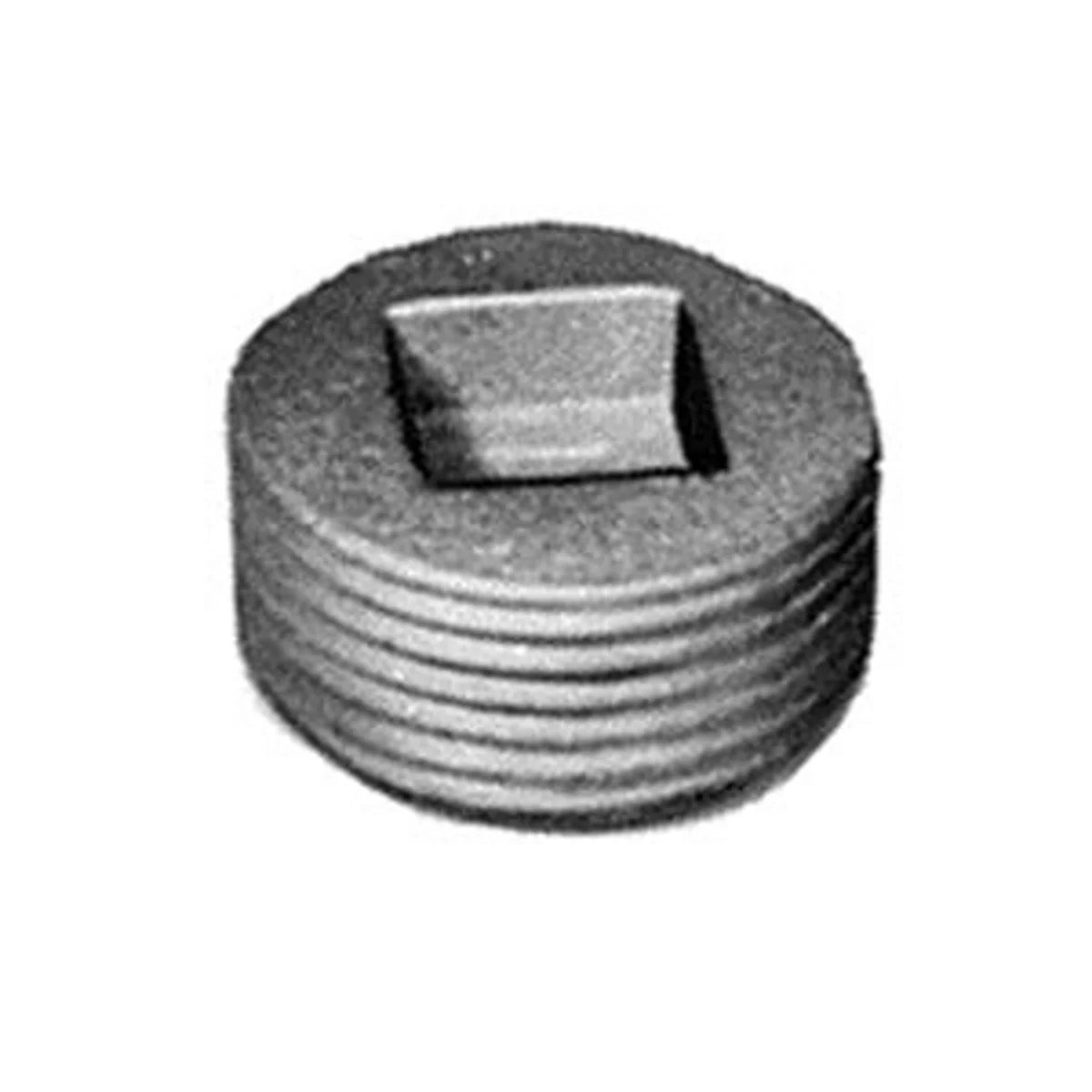

Appleton PLG-300 3 Recessed Head Close-Up Plug

Product Description

The Appleton PLG-300 is a three-inch recessed head close-up plug designed for use in explosionproof and dust-ignitionproof applications. This product is suitable for closing threaded conduit openings and is compatible with threaded metal conduit and IMC. Its robust construction meets safety standards, making it a reliable choice for electrical fittings.

• Compatible with threaded rigid metal conduit and IMC.
• Explosionproof and dust-ignitionproof design.
• Made from malleable iron with a zinc electroplated finish.

Product Highlights

This close-up plug is essential for maintaining safety in hazardous locations while providing secure closure for conduit openings.

Product Information

Standard Information

• Brand: Appleton
• MPN: PLG-300

Technical Specifications

• Material: Malleable Iron
• Size: 3 inches
• Type: Recessed Head, Explosionproof, Dust-Ignitionproof
• Connection Type: Tapered MNPT
• Finish: Zinc Electroplate
• Standards: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 25 and 30
• Weight: 2.17 pounds
• Dimensions: Length - 6.5 inches, Width - 4.7 inches, Height - 0.62 inches
• UPC: 781381652551
