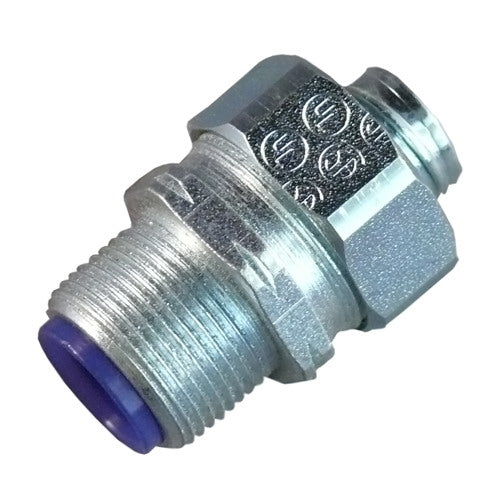

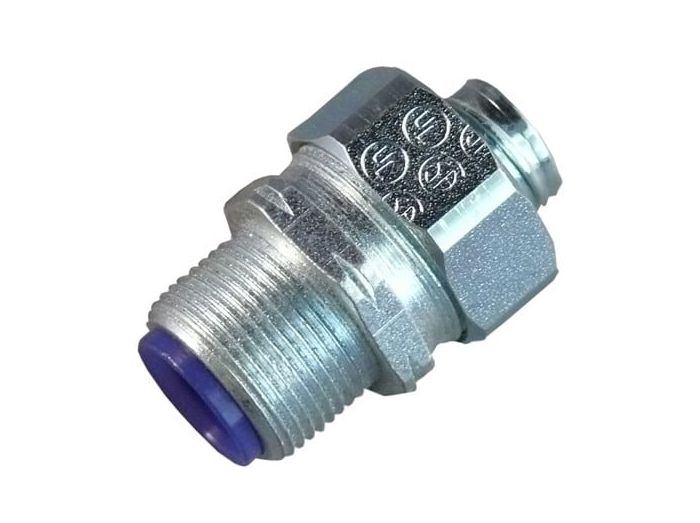

Appleton PG50-STB PG Metric Thread Straight Liquidtight Connector 1/2 IN

Product Description

The APPLETON PG50-STB is a PG Metric Thread Straight Liquidtight Connector. Designed for use with liquidtight flexible metal conduit, it features a PG16 threaded x compression connection. Constructed from steel with a zinc electroplated finish, it includes a blue nylon insulator to protect against wire damage. Suitable for wet locations.

• Concretetight, liquidtight, oiltight, and raintight
• Insulated throat protects against wire damage
• Compact design with small turning radius

Product Highlights

This connector provides a dependable connection for liquidtight flexible metal conduit in various applications, including machine tool building, motor and transformer terminations, and robotics assembly.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: PG50-STB
• Country of Origin: MX

Technical Specifications

• Application: For Liquidtight Flexible Metal Conduit
• Brand Name: Appleton
• Connection: PG16 Threaded X Compression
• Country of Origin: MX
• Finish: Zinc Electroplated
• Insulation: Insulated
• Material: Steel
• Special Features: Compact design with small turning radius, Full, machined metric threads, Insulated throat protects against wire damage, Provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground, Suitable for wet locations, Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
• Standard: UL 514B, E14814, CSA C22.2 No. 18.3, 65178, German Industry Standard DIN 40430
• Sub_Brand: Appleton
• Trade_Size: 1/2 Inch
• Type: Concretetight Liquidtight Oiltight Raintight
• Throat Type: Nylon Insulated
• Approval: UL 514B, CSA C22.2
• Used On: Flexible Metallic Liquidtight Conduit
• Additional Info: Size 1.25 Inch Dia; Thread Size 16 MM; Insulator Color Blue
• Manufacturer Part Number: PG50-STB
• Product Series: PG
• Family Series: Appleton Fittings, PG Series
• Conduit/Cable Type: FMC (Flexible Metallic Conduit)
• Connection Type: Screw-In
• Angle: Straight
• Hub Size: PG 16
• Hub Type: PG Metric Thread
• Grounding: No
• Insulated Throat: Yes
• Jacketed: No
• Composition: Metallic
• Protection Rating: Liquid Tight
• Hazardous Location: No
• Approvals: CSA, UL
• Catalog Number: PG50STB
• EU RoHS Indicator: C
• Series: PG Series
• Suitable For Use With: Liquidtight Flexible Metallic Conduit
• Size: 1/2 IN in
