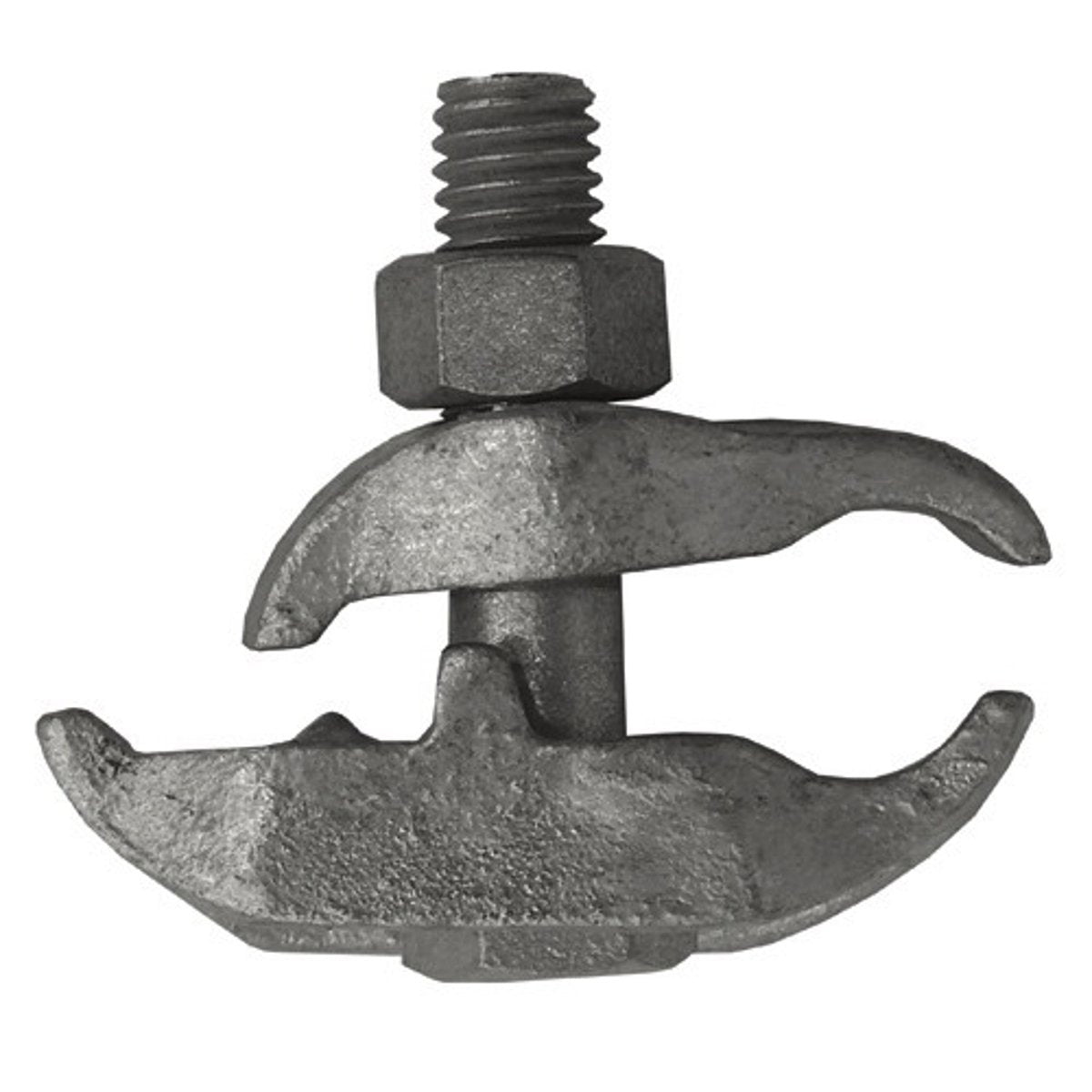

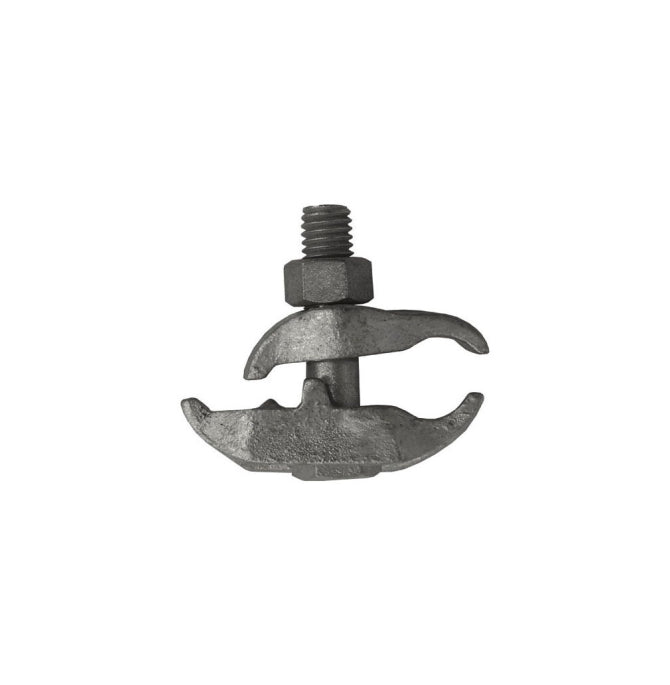

Appleton PC-125PAR Parallel Type Clamp 1-1/4 inches

Product Description

The APPLETON PC-125PAR parallel type clamp is designed for securing rigid metal conduit, IMC, or EMT to structural beams. Constructed from malleable iron castings and steel hardware with a hot-dipped galvanized finish, this 1-1/4" clamp provides reliable support for electrical conduit installations in commercial and industrial environments.

• Parallel Type Clamp
• For Rigid, IMC And EMT
• Easily installs

Product Highlights

Provides reliable support for electrical conduit installations. Constructed from malleable iron with a hot dip galvanized finish for durability and corrosion resistance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: PC-125PAR
• Country of Origin: China

Technical Specifications

• Size: 1-1/4 IN
• Type: Heavy Duty
• Brand: Appleton
• Finish: Hot-Dipped Galvanized
• Capacity: 1-1/4 in
• Material: Malleable Iron Casting, Steel Hardware
• Used With: Rigid, IMC or EMT Conduit
• Trade Size: 1-1/4 Inch
• Product UPC: 78138128829
• 12-Digit UPC: 781381288293
• Applications: For Rigid, IMC And EMT
• Mounting Type: Nut
• Catalog Number: PC-125PAR
• Manufacturer: Appleton Electric
• Country of Origin: China
• Made in USA: No
• Special Features: Easily installs; Capable of withstanding heavy loads; Three styles meet every installation need, heavy duty u-bolts, hex bolts and hex nuts
• Standard: CSA C22.2 No. 18.4, CSA 065178
• UPC: 781381288293
• GTIN: 00781381288293
• Item Type: Parallel Type Clamp
• Material (Body): Malleable Iron
• Material (Hardware): Steel
• Finish (Body): Hot Dip Galvanized
• Finish (Hardware): Mechanically Galvanized
• Approval: CSA C22.2
• Application: For securing RMC, IMC or EMT across, parallel or perpendicular to beam, channel and angle supports
• Standard & Approvals: CSA 065178, C22.2 No 18.4 Certified, RoHS Compliant
• Suitable For Use With: IMC/EMT/Rigid Conduit
• Catalog ID: APPPC-125PAR
• Diameter: 1 1/4 in
• Part Number: PC125PAR
