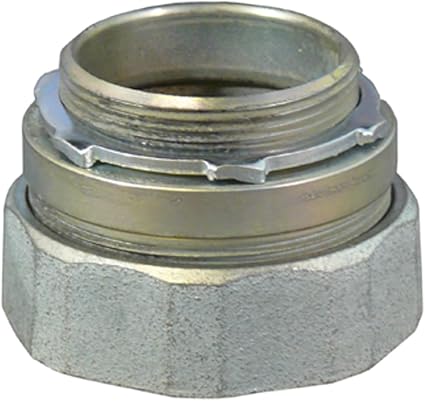

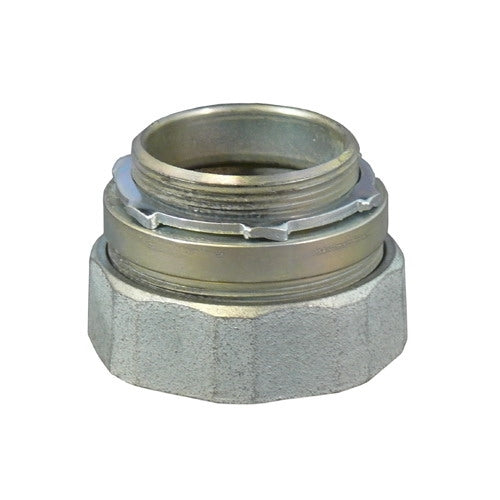

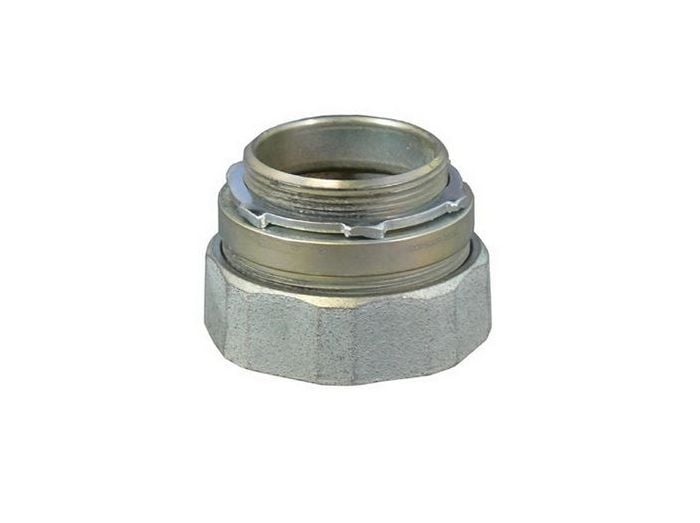

Appleton NTC-350 compression connector 3-1/2 inches concrete tight

Product Description

The Appleton NTC-350 is a 3-1/2" steel compression connector that is concrete tight and used on threadless rigid conduit. It is designed to secure and terminate steel EMT to knockouts and concrete tight boxes. The connector features a male NPS thread connection and is UL 514-B listed.

• Concrete Tight
• Used on Threadless Rigid Conduit
• UL 514-B

Product Highlights

Appleton's compression connector ensures secure termination of steel EMT, offering a reliable, concrete-tight connection for threadless rigid conduit applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: NTC-350
• Country of Origin: MX

Technical Specifications

• Material: Malleable Iron
• Diameter: 1.19 in
• Insulation: Non-Insulated
• Application: For Use To Secure And Terminate Steel EMT To Knockouts And Concrete Tight Box
• Connection: Male Threaded X Compression
• Country of Origin: MX
• Standard: UL 514B, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1
• Type: Compression Connector
• UNSPSC: 39121311
• UPC 12: 781381638104
• Brand: Appleton
• Manufacturer: Appleton
• Suitable For Use With: Threadless Rigid Conduit
• Trade Size: 3-1/2 in
• Product Series: Threadless Compression
• Family Series: Appleton Couplers, Threadless Compression Series
• Description: Hardware
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Compression
• Protection Rating: Concrete Tight
• Composition: Malleable Iron
• Insulated Throat: No
• Hazardous Location: Yes
• NEMA Rating: NEMA FB1
• Approvals: CSA, UL
• Size: 3-1/2 IN in
