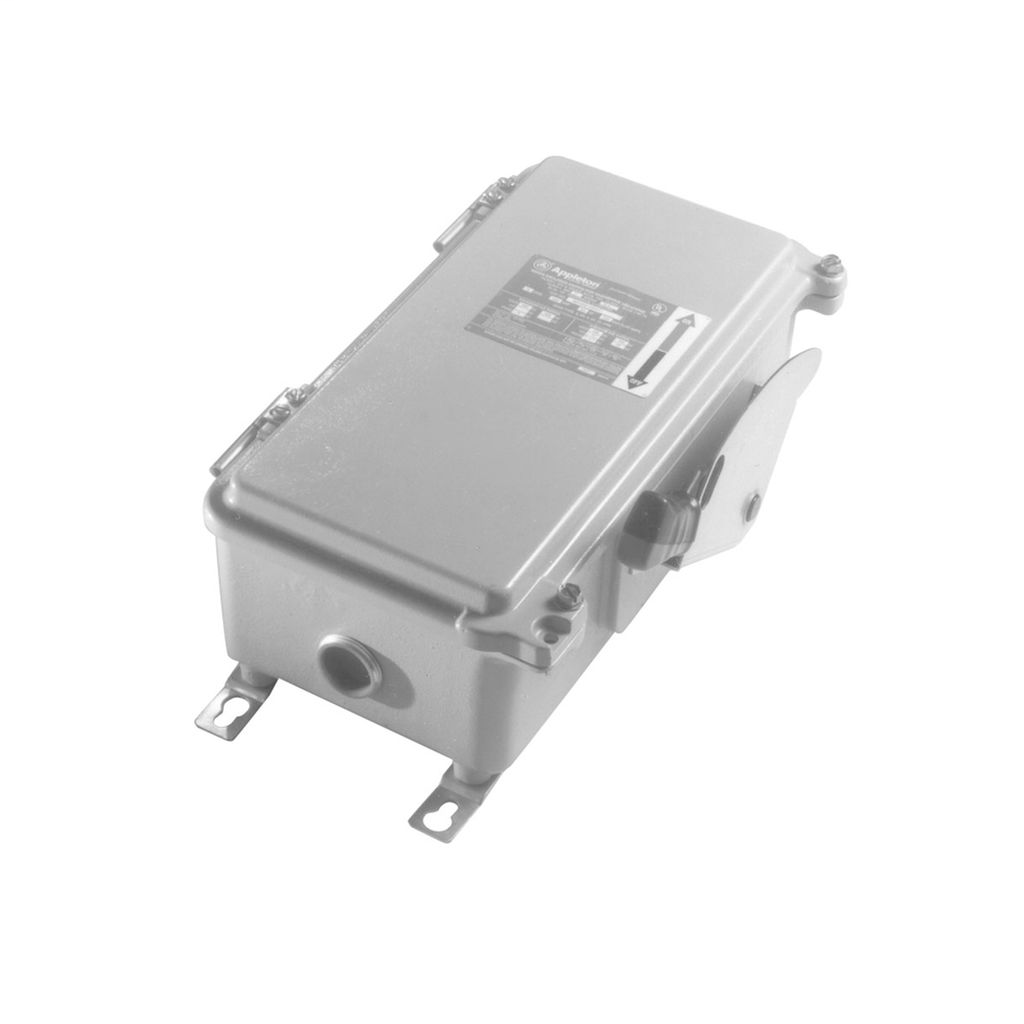

Appleton MD2DS3034F MD2DS-DIV2 DISCONNECT 30 AMP 600 VAC

Product Description

Appleton MD2DS3034F disconnect switch is designed for use in hazardous areas. It allows for safe circuit disconnect or motor control operation. This model is factory sealed, eliminating the need for external seals. It is available in both fused and non-fused models, suitable for a variety of applications.

• Rated for 600 VAC and 30 Amperes
• Fusible provision with Class J fuses (not included)
• Robust construction with copper-free aluminum and epoxy powder coating

Product Highlights

This disconnect switch is ideal for powering motors in industrial settings.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: MD2DS3034F
• Voltage Rating: 600 VAC
• Current Rating: 30 Ampere
• Power Rating: 20 HP
• Fuse Type: Class J
• Enclosure Type: Class I Div 2 Group B C D
• Size: 11.56 inches W x 11 inches D
• Enclosure Material: Copper Free Aluminum
• Finish: Epoxy Powder Coated
• Approval: UL 98
• Made in USA: Yes
