Appleton LRL50M LRL-Type Conduit Outlet Body 1/2 inches

Product Description

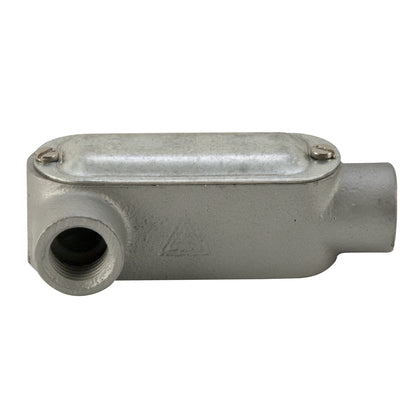

The APPLETON LRL50M is a LRL-Type conduit outlet body with a 1/2" hub. These conduit bodies connect and change the direction of conduit runs, allowing connections for branch runs. They serve as pulling fittings and permit access to conductors for splicing and maintenance. Constructed from malleable iron with a triple coated finish.

• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
• Form 35™ malleable iron UNILETS™ are high tensile strength and ductility, high corrosion resistance, high impact and shock resistance

Product Highlights

This conduit outlet body is ideal for making bends in a conduit system, providing access for splicing, and connecting conduit runs.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: LRL50M
• Country of Origin: MX

Technical Specifications

• Form: Form 35
• Finish: Triple Coated
• Capacity: 5 cu-in
• Hub Size: 1/2 in
• Material: Malleable Iron
• Enclosure: NEMA FB-1
• Mounting Type: Surface
• Number of Hubs: 2
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Type: Type LRL
• Brand: Appleton
• MPN: LRL-50M
• Part Number #: LRL50M
• SKU #: 2394725
• UNSPSC: 39131708
• UPC: 00078138148280
• Component: Conduit Body
• Diameter: 1/2 in
