Appleton LRL100-M Unilets Conduit Outlet Body 1 in

Product Description

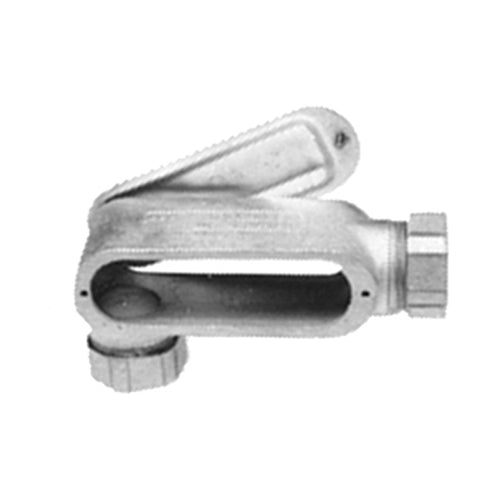

The Appleton LRL100-M Unilets Conduit Outlet Body is a type LRL with a 1-inch hub. Constructed from malleable iron with a triple coating, it has a 14.3 cu-in capacity and is suitable for pulling cables and wiring connections. It features accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity.

• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
• Form 35 malleable iron UNILETS are high tensile strength and ductility, high corrosion resistance, high impact and shock resistance

Product Highlights

This conduit outlet body is ideal for connecting and changing the direction of conduit runs, making bends, and allowing connections for branch runs.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: LRL100-M
• Country of Origin: United States

Technical Specifications

• Brand: Appleton
• Part Number #: LRL100M
• Capacity: 14.3 cu-in
• UNSPSC: 39131708
• Standards: UL 514A/514B/E2527|CSA C22.2 No. 18.3/065183
• Material: Malleable Iron
• Diameter: 1 in
• Type: Type LRL
• MPN: LRL100M
• UPC: 781381483100
• Country of Origin: United States
• Connection Type: Tapered FNPT
• Enclosure: NEMA FB-1
• Finish: Triple Coated
• Form: Form 35
• Hub Size: 1 in
• Mounting Type: Surface
• Number of Hubs: 2
