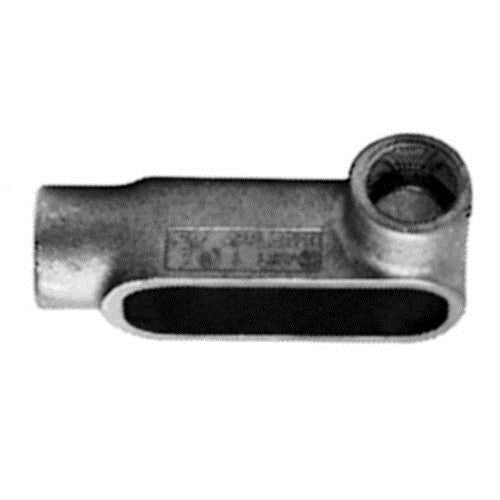

Appleton LR77 Type LR Conduit Outlet Body, 2-1/2 in Hub, Form 7, 102 cu-in

Product Description

The Appleton LR77 Type LR Conduit Outlet Body is designed for use with rigid steel, aluminum, and IMC conduit. Its hub measures two and one half inches, fitting flush against flat surfaces for a stable installation. This unit features a cubic capacity of one hundred two cubic inches for ample space when pulling wires and making splices.

• Grayloy iron construction with a triple coated finish for durability
• Wedge-Lok form-in-place cover approved for wet locations
• Interchangeable with Crouse-Hinds Form 7 bodies and components

Product Highlights

This conduit body supports secure and effective electrical installations, offering easy conduit joining and protecting conductor insulation.

Product Information

Standard Information

• Brand: Appleton
• MPN: LR77

Technical Specifications

• Application: For Rigid Steel/Aluminum and IMC Conduit
• Capacity: 102 cu-in
• Color: Gray
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Dimensions: 10.5 in L x 5.75 in W x 5.13 in H
• Enclosure: NEMA FB-1
• Finish: Triple Coated
• Form: Form 7
• Hub Size: 2-1/2 in
• Material: Grayloy Iron
• Mfg Standards/Approvals: Buy American Act and RoHS Compliant, UL 514A/514B/E2527, C22.2 No. 18.3/065183 Certified
• Mounting Type: Surface
• Number of Hubs: 2
• Package Height: 5.3 IN
• Package Length: 10.8 IN
• Package Weight: 10.0 L
• Package Width: 7.6 IN
• Type: Type LR
• Warranty: Limited
