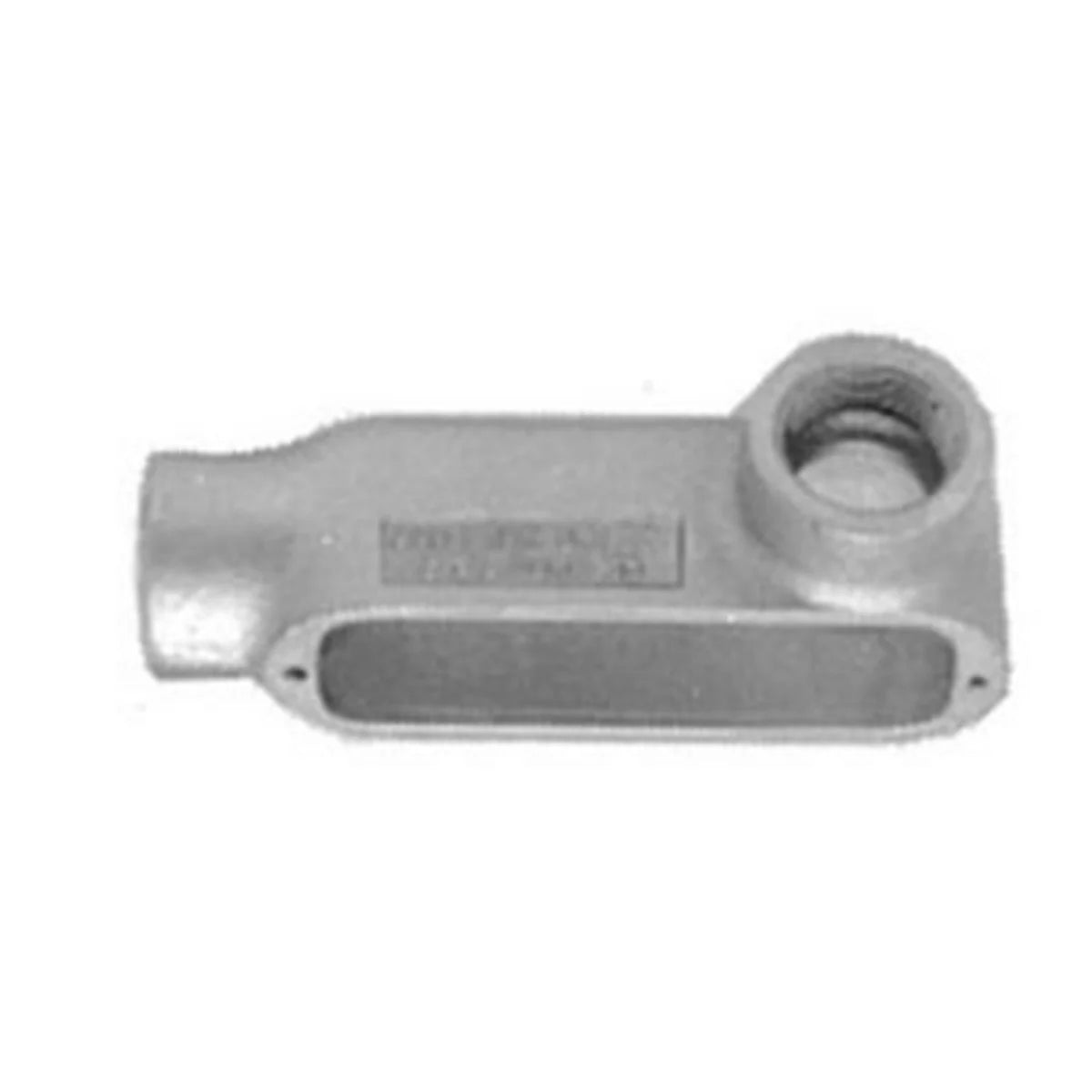

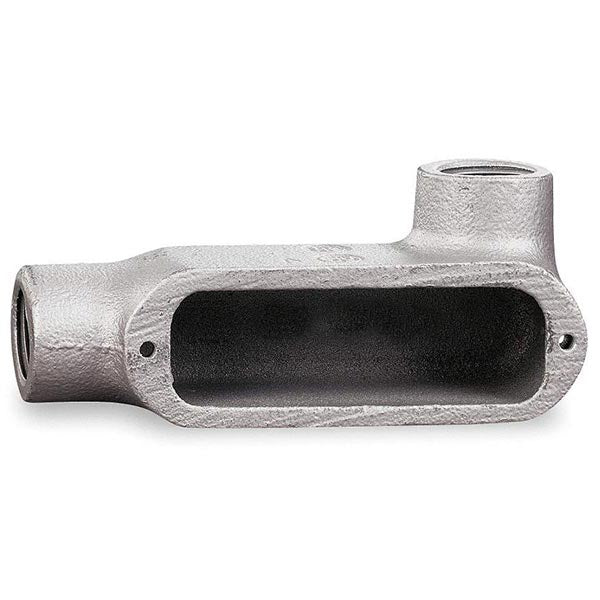

Appleton LR75-M Body Out Conduit 3/4in Form 35 7.5cu-in

Product Description

Appleton offers the LR75-M Body Out Conduit, designed for a wide range of conduit applications. This product features a three-fourths inch hub and has a capacity of seven point five cubic inches. It is made from malleable iron and triple coated for durability.

• Form 35 configuration for secure conduit connections
• Features two hubs to facilitate access for splicing
• Suitable for use with rigid steel, aluminum conduit, and IMC

Product Highlights

This conduit outlet body is ideal for both connecting and changing direction in conduit runs while allowing for easy access to conductors.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Emerson Electric

Technical Specifications

• MPN: LR75-M
• Capacity: 7.5 cu-in
• Hub Size: 3/4 inch
• Dimensions: 5.38 inches Length x 2.19 inches Width x 2.31 inches Height
• Material: Malleable Iron
• Finish: Triple Coated
• Connection Type: Tapered FNPT
• Number of Hubs: 2
• Mounting Type: Surface
• Country of Origin: Mexico
