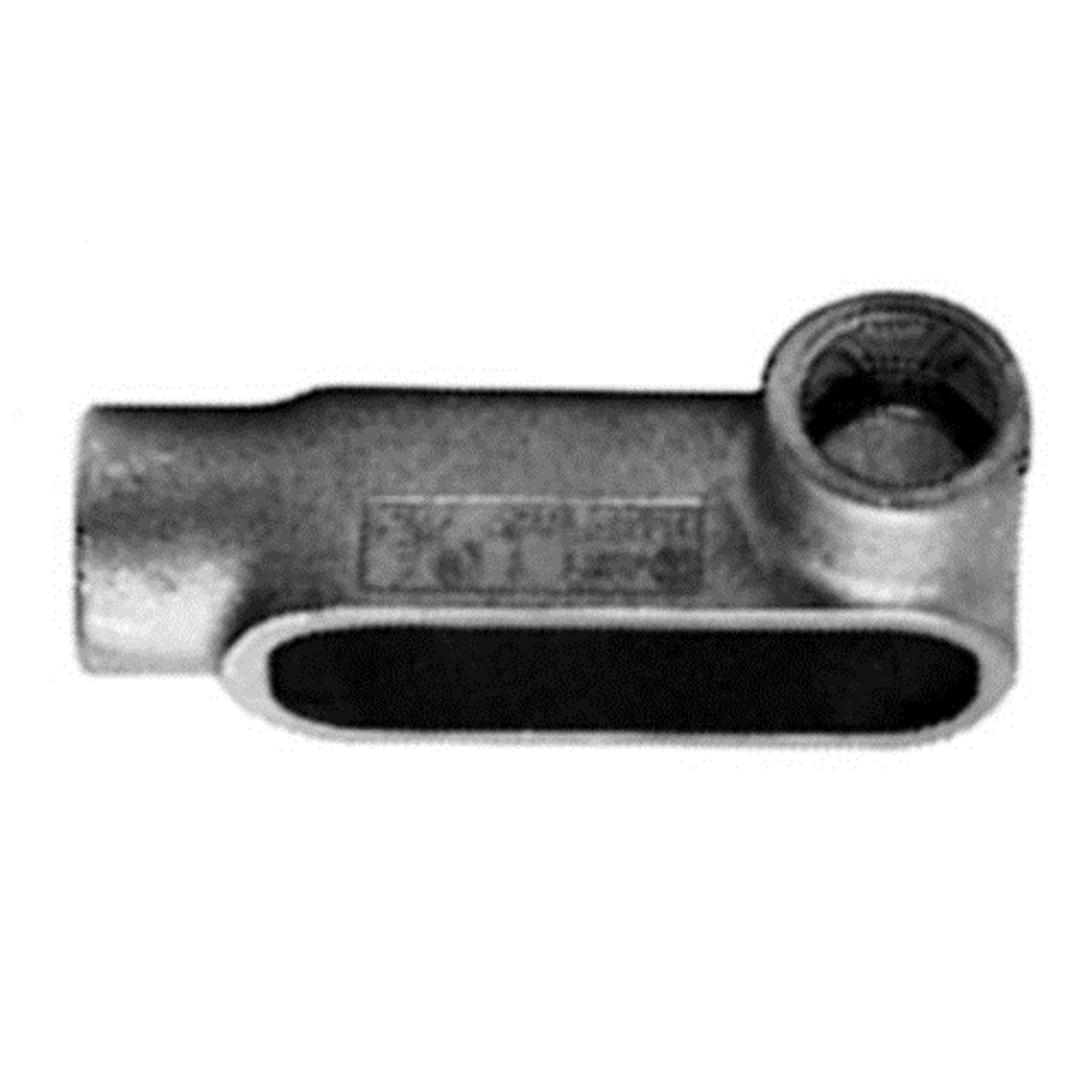

Appleton LR67SA Conduit Outlet Body, Type LR, 2 Inch Hub, 50 CU-IN Capacity, Form 7

Product Description

The Appleton LR67SA is a 2 inch hub conduit outlet body designed for safe electrical connections. This product is made from aluminum with an epoxy powder coat finish, ensuring durability and resistance to corrosion. It features a tapered female threaded connection and complies with various safety standards.

• Hub size: 2 inches
• Form: 7
• Length: eight point one three inches and width: four point zero six inches

Product Highlights

This conduit outlet body is suitable for use with rigid steel and rigid aluminum conduit, as well as IMC. Its design allows for effective wire pulling and splicing while providing access for maintenance.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: LR67SA
• Material: Aluminum
• Finish: Epoxy Powder Coat
• Connection: Tapered Female Threaded
• Application: For use with rigid steel, rigid aluminum conduit and IMC
• Standards: UL 514A, UL 514B, CSA C22.2 No. 18.3, NEMA FB-1
• Width: four point zero six inches
• Length: eight point one three inches
• Hub Size: 2 inches
