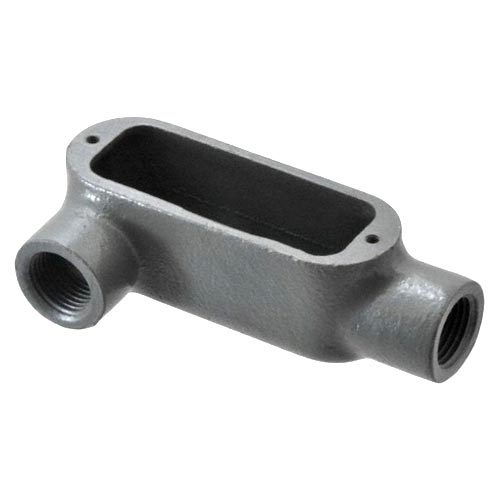

Appleton LR67 O-Z/Gedney Type LR Conduit Outlet Body 2 in Hub Form 7 50 cu-in Capacity

Product Description

The Appleton LR67 is a conduit outlet body designed for rigid and IMC conduit applications. This product features a two-inch hub and a Form 7 design with a capacity of fifty cubic inches. The body is constructed from Grayloy iron and finished with aluminum enamel and zinc electroplating for durability.

• Flat back design increases wiring capacity.
• Compatible with other manufacturers' Form 7 conduit bodies.
• Gasketed covers suitable for wet locations.

Product Highlights

The Appleton LR67 is built to facilitate wiring connections in various electrical installations, ensuring maximum efficiency and safety.

Product Information

Standard Information

• Brand: Appleton
• MPN: LR67

Technical Specifications

• Application: Rigid/IMC conduit applications
• Capacity: 50 cubic inches
• Color: Gray
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Dimensions: 8-1/8 inches L x 4-1/8 inches W x 3-1/8 inches H
• Enclosure: NEMA FB-1/FB-2.10
• Finish: Aluminum enamel/zinc electroplated
• Hub Size: 2 inches
• Material: Grayloy iron
• Mfg Standards/Approvals: UL 514A, C22.2, Federal Specification A-A-50563
• Mounting Type: Surface
• Number of Hubs: 2
• Warranty: Limited
