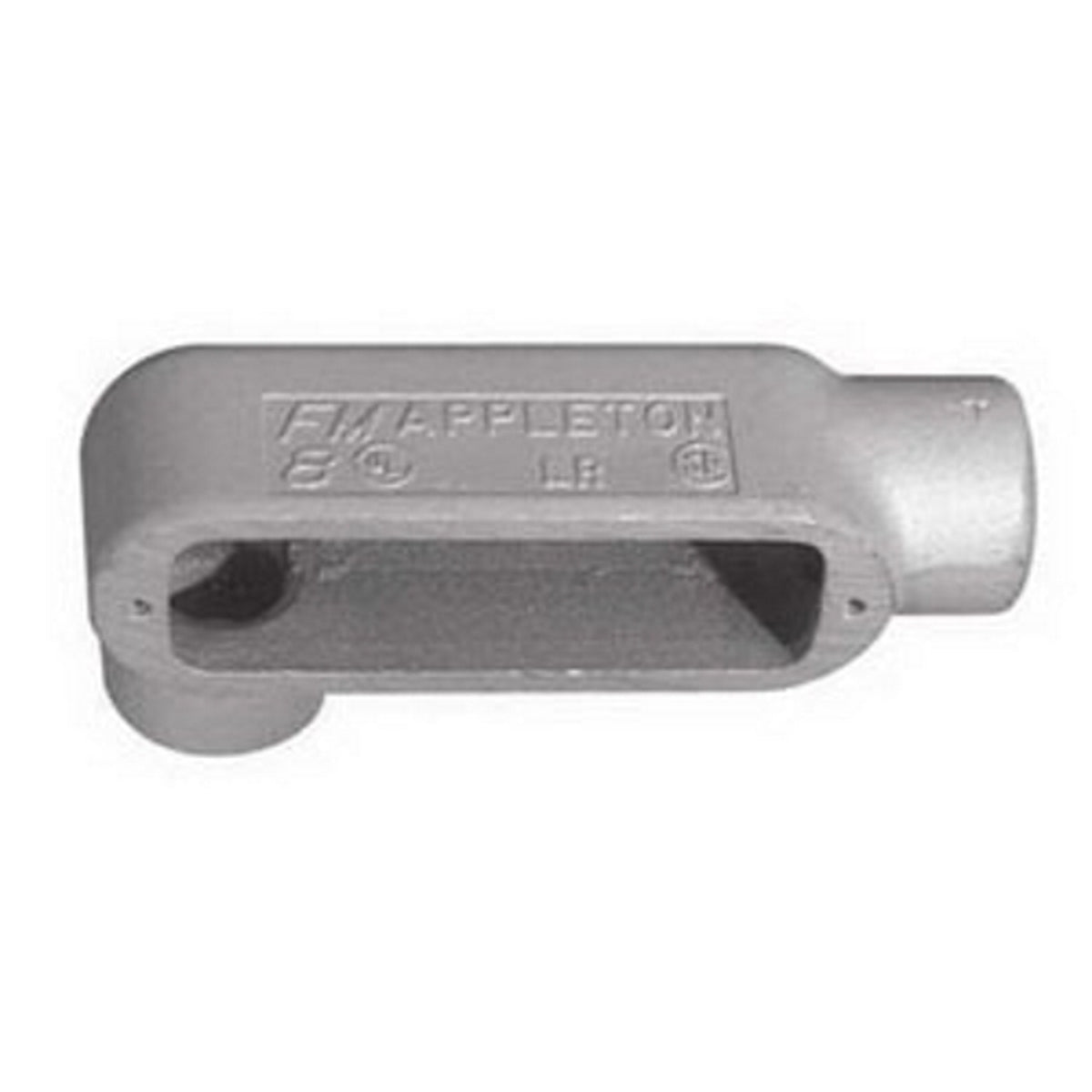

Appleton LR58 Conduit Outlet Body Type LR 1-1/2 in Hub 2 Hubs 42.5 cu-in Capacity

Product Description

The Appleton LR58 Conduit Outlet Body is designed for use with rigid steel conduit. It features two hubs and provides a capacity of forty-two point five cubic inches. This model measures nine point one three inches in length, four point zero three inches in width, and four point zero three inches in height. Crafted from Grayloy iron, the outlet body supports tapered female threaded connections.

• Hub size: one and one-half inches
• Application: Suitable for rigid steel conduit and IMC
• Triple-coated finish for protection

Product Highlights

This product allows for efficient wire pulling and splicing, making it ideal for various electrical installations, ensuring reliability and performance.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Brand: Appleton

Technical Specifications

• Catalog Number: LR58
• Material: Grayloy-Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Connection: Tapered Female Threaded
• Form: 8
• Hub Size: 1-1/2 inches
• Country of Origin: Mexico
• Standards: UL 514A, UL 514B, NEMA FB-1
