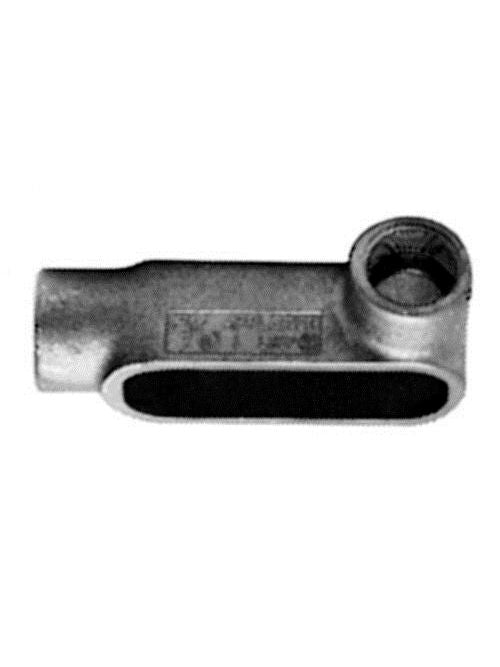

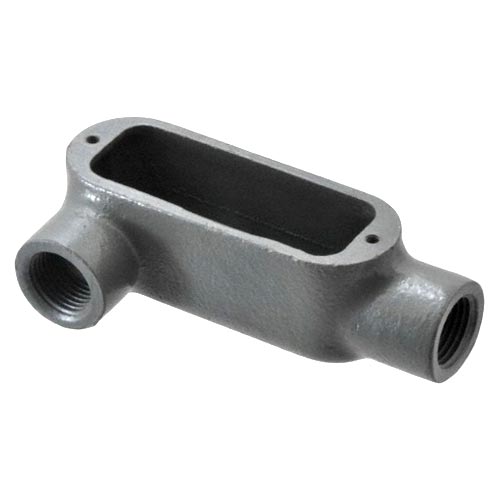

Appleton LR57 1-1/2 Form 7 Body

Product Description

The Appleton LR57 is a type LR conduit outlet body designed for electrical applications. It has a hub size of one and a half inches and a form that meets Type 7 specifications. This product is made from Grayloy iron and features a durable triple-coat finish which includes zinc electroplate, chromate, and epoxy powder coat. The dimensions include a length of seven point one three inches and a width of three and a half inches.

• Hub Size: 1-1/2 inches
• Material: Grayloy Iron
• Connection Type: Tapered Female

Product Highlights

This conduit outlet body is suitable for use with rigid steel, rigid aluminum conduit, and intermediate metal conduit (IMC). It is designed to provide a secure connection for electrical wiring in hazardous locations.

Product Information

Standard Information

• Brand: Appleton
• MPN: LR57

Technical Specifications

• Type: Type LR Conduit Outlet Body
• Color: Gray
• Finish: Triple-Coat (Zinc Electroplate, Chromate, Epoxy Powder Coat)
• Dimensions: 7-1/8 inches long x 3-9/16 inches wide x 2-9/16 inches high
• Capacity: 27 cu-in
• Connection Type: Tapered Female Threaded
• Application: For use with Rigid Steel, Rigid Aluminum Conduit and IMC
• Country of Origin: MX
• Warranty: Limited
