Appleton LR50A APPLR50A APN 1/2 IN

Product Description

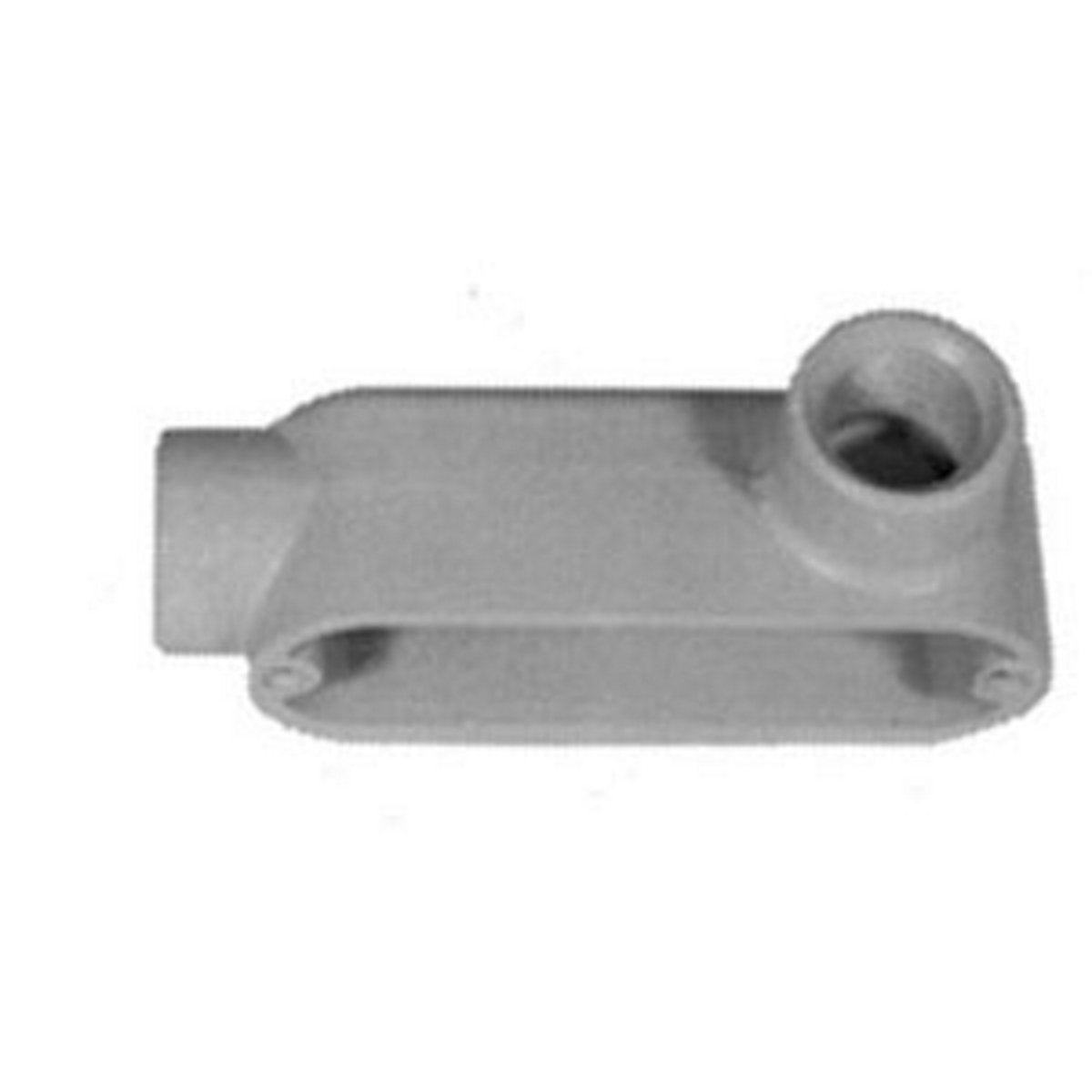

Appleton LR50A is a conduit outlet body designed to connect and change the direction of conduit runs. This product features a half-inch hub and is made from pressure cast aluminum. It has a four cubic inch capacity and is epoxy powder coated for durability.

• Constructed from pressure cast aluminum for strength
• Features two hubs for flexible installation options
• Suitable for use with rigid steel, rigid aluminum conduit, IMC, and EMT

Product Highlights

This outlet body is perfect for applications requiring reliable access to conductors for splicing and maintenance.

Product Information

Standard Information

• Brand: Appleton
• Part Number: LR50A

Technical Specifications

• Form: 85
• Capacity: 4 cu-in
• Hub Size: 1/2 in
• Material: Pressure Cast Aluminum
• Finish: Epoxy Powder Coated
• Enclosure: NEMA FB-1
• Dimensions: 4.31 in L x 2 in W x 2.06 in H
• Connection Type: Tapered FNPT
• Application: For Rigid Steel, Rigid Aluminum, IMC and EMT Conduit
