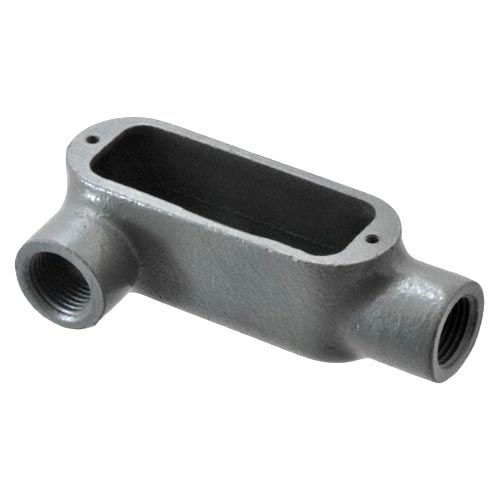

Appleton LR37 Conduit Outlet Body, 1 in Hub, Type LR, Form 7

Product Description

Appleton LR37 is a conduit outlet body designed for rigid and IMC conduit applications. It comes with a one-inch hub and provides a volume capacity of ten point five cubic inches. The body is made of Grayloy iron and finished with aluminum enamel and zinc electroplating for durability.

• Flat back design for greater wiring capacity and surface mounting
• Interchangeable with Form 7 conduit bodies from other manufacturers
• Suitable for wet locations with gasketed covers

Product Highlights

The LR37 conduit outlet body is ideal for electrical installations requiring reliable and durable construction.

Product Information

Standard Information

• Brand: Appleton
• MPN: LR37

Technical Specifications

• Application: Rigid/IMC Conduit Applications
• Capacity: 10.5 cu-in
• Color: Gray
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Dimensions: 6 in L x 2-3/4 in W x 1-7/8 in H
• Enclosure: NEMA FB-1/FB-2.10
• Finish: Aluminum Enamel/Zinc Electroplated
• Form: Form 7
• Hub Size: 1 in
• Material: Grayloy Iron
• Mfg Standards/Approvals: RoHS Compliant, UL 514A File No. E18095, C22.2 File No. 18/009795
• Mounting Type: Surface
• Number of Hubs: 2
• Weight: 1.86 lb
