Appleton LR28 Conduit Outlet Body, Type LR, 3/4 in Hub, 2 Hubs, 8 cu-in Capacity, Form 8 Form, NEMA FB-1 Enclosure

Product Description

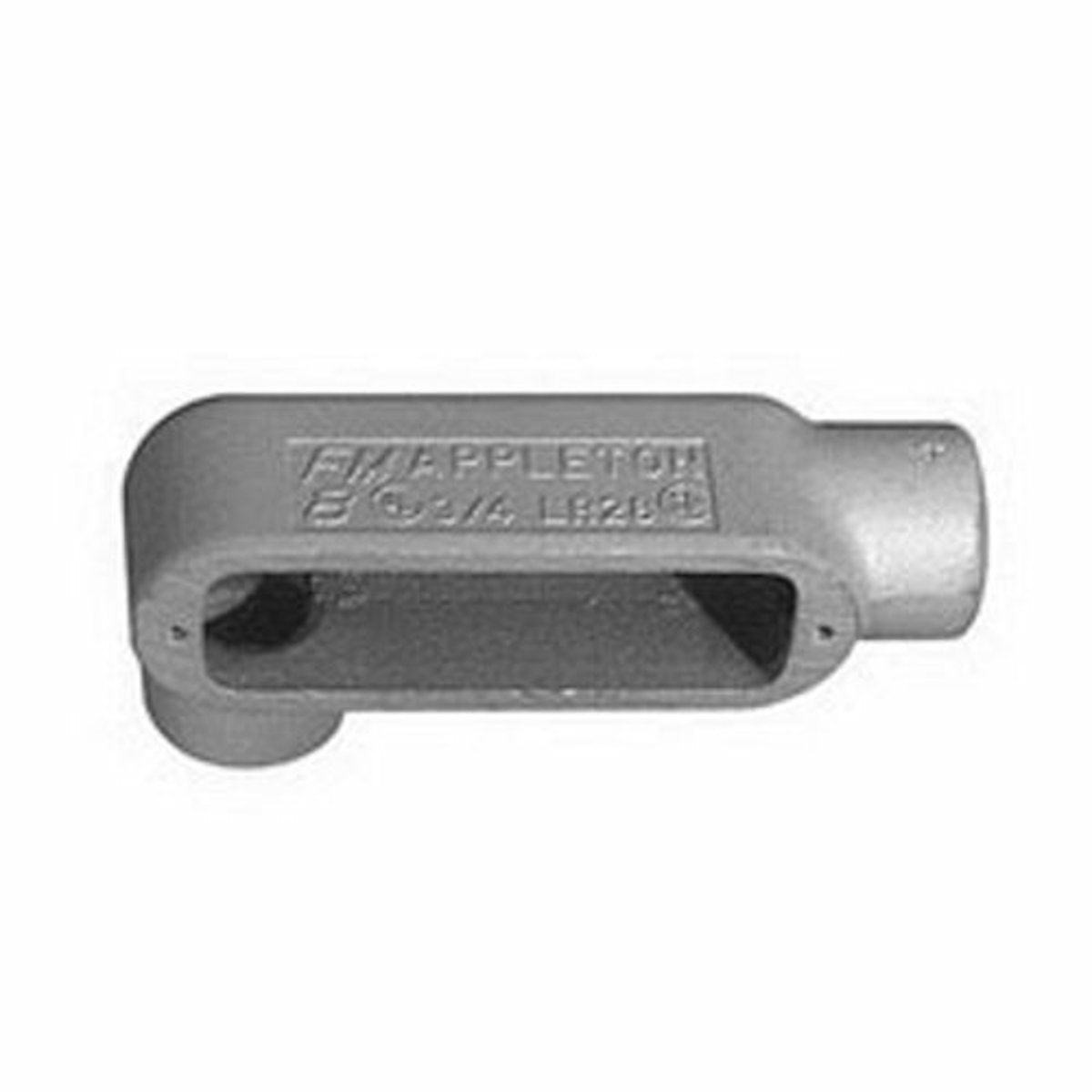

The Appleton LR28 is a conduit outlet body designed for use with rigid steel conduit and IMC. This product features a hub size of three-fourths inches and is built from Grayloy iron with a triple-coat finish. The dimensions include a length of five and three-fourths inches, a width of two and one-half inches, and a height of two and one-half inches. The Appleton LR28 is suitable for surface mounting and provides necessary connections in conduit runs.

• Hub Size: 3/4 inch
• Wiring Capacity: 8 cubic inches
• Standard: UL 514A, UL 514B, NEMA FB-1

Product Highlights

This conduit outlet body is ideal for pull fittings, making bends, and providing openings for splicing. It also connects and directs conduit runs while allowing access for maintenance.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: LR28
• Material: Grayloy-Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)
• Connection: Tapered Female Threaded
• Special Features: Fits flush against flat surfaces for stability; smooth openings for easy conduit joining; interchangeable with other Form 8 components
• Country of Origin: Mexico
