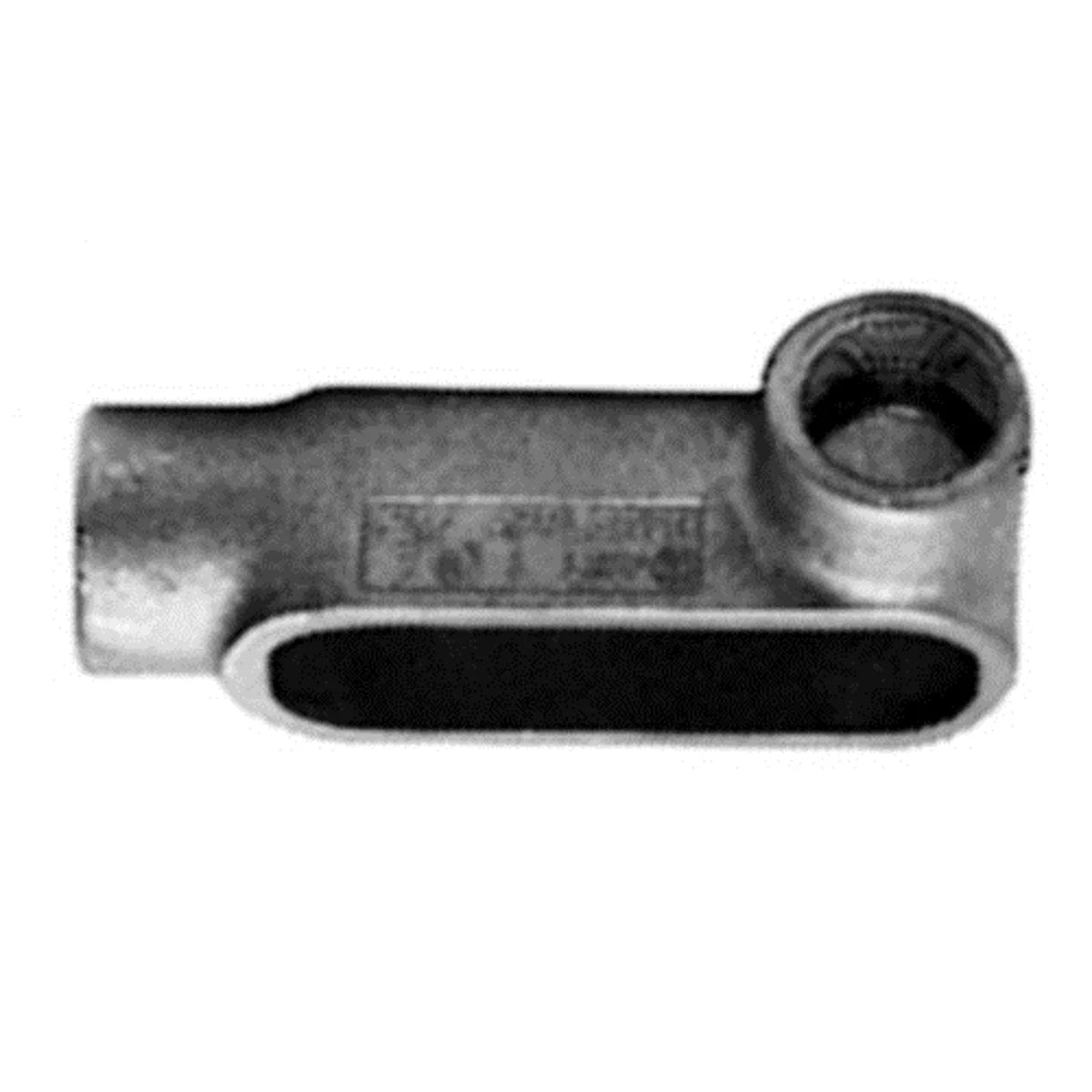

Appleton LR27SA Conduit Outlet Body, Type LR, 3/4 in Hub, 2 Hubs, 7 cu-in Capacity, Form 7

Product Description

The Appleton LR27SA is a conduit outlet body designed for rugged applications. It features a three-quarter inch hub and accommodates two hubs with a seven cubic inch capacity. The unit is crafted from aluminum and finished with an epoxy powder coat for durability. This product is intended for use in conjunction with rigid steel and aluminum conduits, making it suitable for various electrical installations.

• Hub size: 3/4 inches
• Form: 7
• UL and CSA listed for safety compliance

Product Highlights

The Appleton LR27SA is ideal for creating bends in conduit systems and provides openings for splicing. It supports connections and allows for changes in conduit direction while maintaining a tight and secure fit.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Sub Brand: UNILETS

Technical Specifications

• Catalog Number: LR27SA
• Material: Aluminum
• Finish: Epoxy Powder Coat
• Connection Type: Tapered Female Threaded
• Country of Origin: Mexico
• Application: For use with rigid steel, rigid aluminum conduit, and IMC
• Length: 5.19 inches
• Width: 2.44 inches
• Height: 2.5 inches
