Appleton LR150A APPLR150A APN Type LR Conduit Outlet Body 1-1/2 in Hub

Product Description

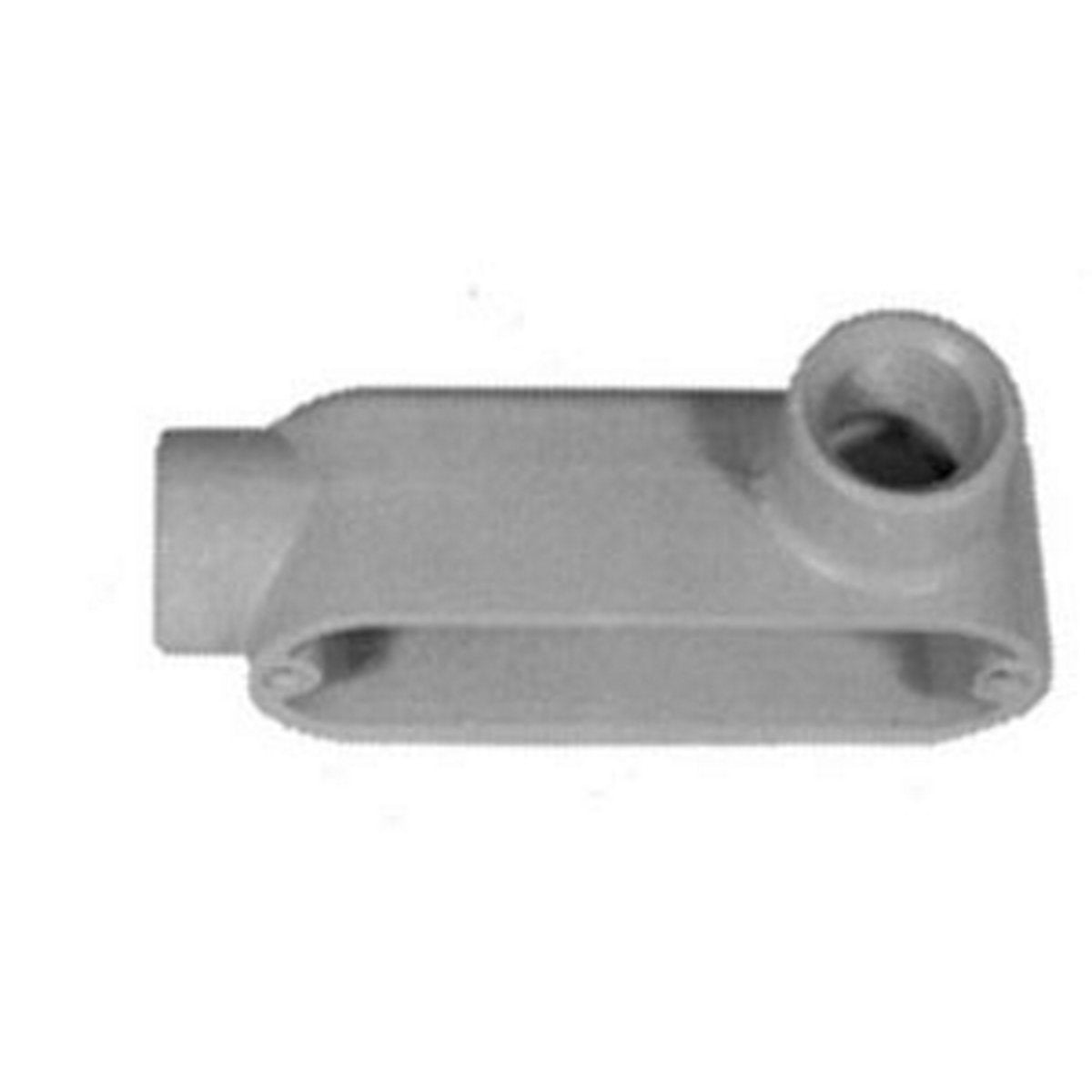

The Appleton LR150A APPLR150A APN is a Type LR conduit outlet body suitable for use in connections and directional changes in conduit runs. It features a one and a half inch hub and is built from pressure cast aluminum. With a capacity of thirty-five cubic inches, this component meets the requirements for branch connections and allows for easy access to conductors for maintenance.

• Constructed from pressure cast aluminum
• Capacity of thirty-five cubic inches
• Designed for surface mounting

Product Highlights

This conduit outlet body is designed to manage bends in conduit systems while providing access for splicing connections.

Product Information

Standard Information

• Brand: Appleton
• MPN: LR150A

Technical Specifications

• Material: Pressure Cast Aluminum
• Finish: Epoxy Powder Coated
• Capacity: 35 cu-in
• Hub Size: 1-1/2 in
• Enclosure: NEMA FB-1
• Dimensions: 7.88 in L x 3.5 in W x 3.81 in H
• Connection Type: Tapered FNPT
• Mounting Type: Surface
• Number of Hubs: 2
• Application: For Rigid Steel, Rigid Aluminum Conduit, IMC and EMT
• Standards: UL 514A/514B/E2527, CSA C22.2 No. 18.3/065183
• Country of Origin: IN
