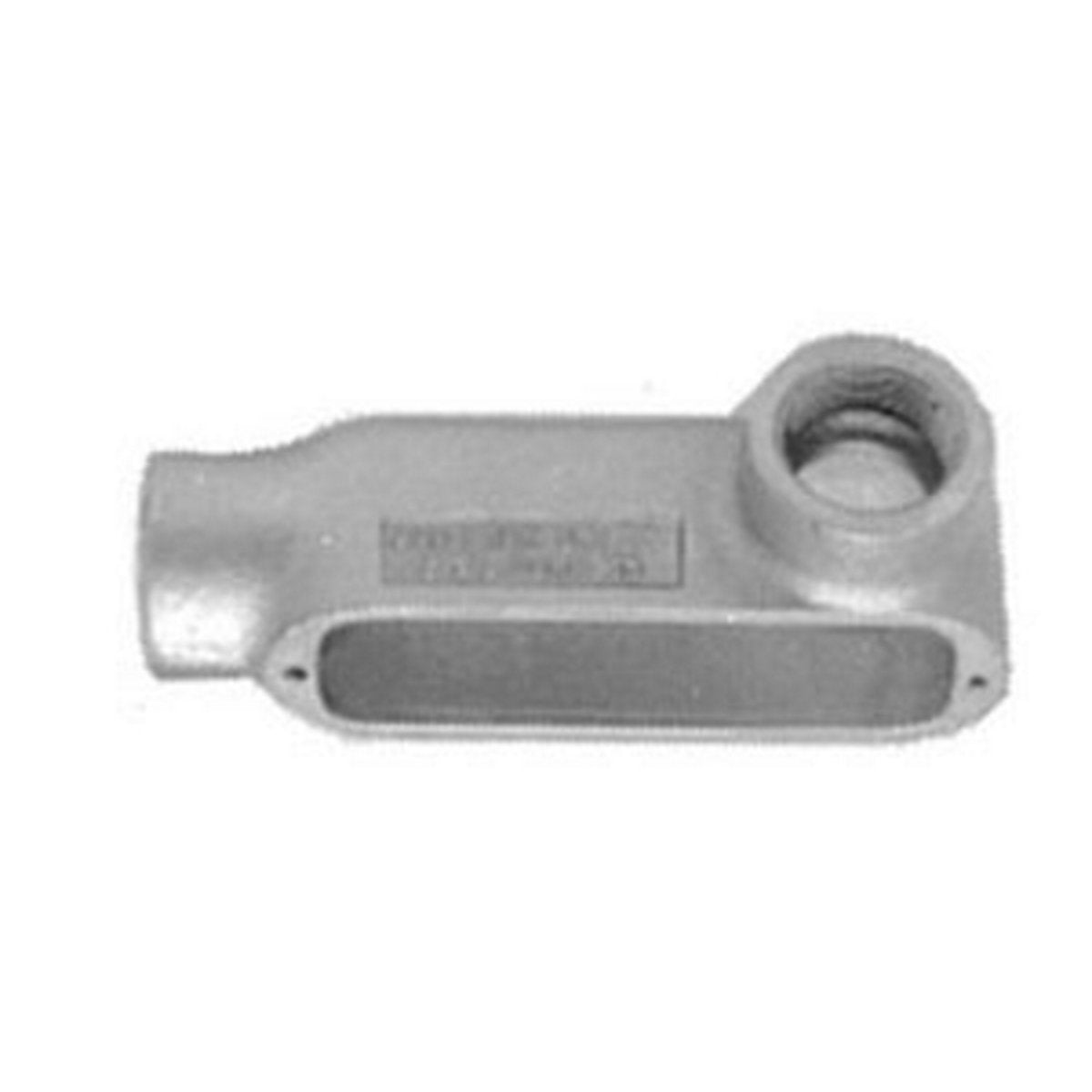

Appleton LR150-M Type LR Conduit Body 1-1/2 Inch Malleable Iron Triple-Coat

Product Description

The Appleton LR150-M is a Type LR conduit body made from malleable iron. It supports installations with a hub size of one and a half inches. This conduit body is designed for use with rigid steel, rigid aluminum conduit, and IMC.

• Hub Size: One and a half inches
• Material: Malleable iron with triple-coat finish
• Application: Suitable for changing direction of conduit runs and providing access for conductors

Product Highlights

The LR150-M offers high tensile strength and ductility. Its triple-coat finish provides effective corrosion resistance, which enhances durability for various applications.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: LR150-M
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Length: Eight point one nine inches
• Width: Three and one half inches
• Connection: Tapered Female Threaded
• Form: 35
• Number of Hubs: Two
• Special Features: Provides openings for splicing and makes bends in conduit systems
