Appleton LR100A UNILET FORM 85 1 ALUMINUM 1 IN REPLACEMENT MPN

Product Description

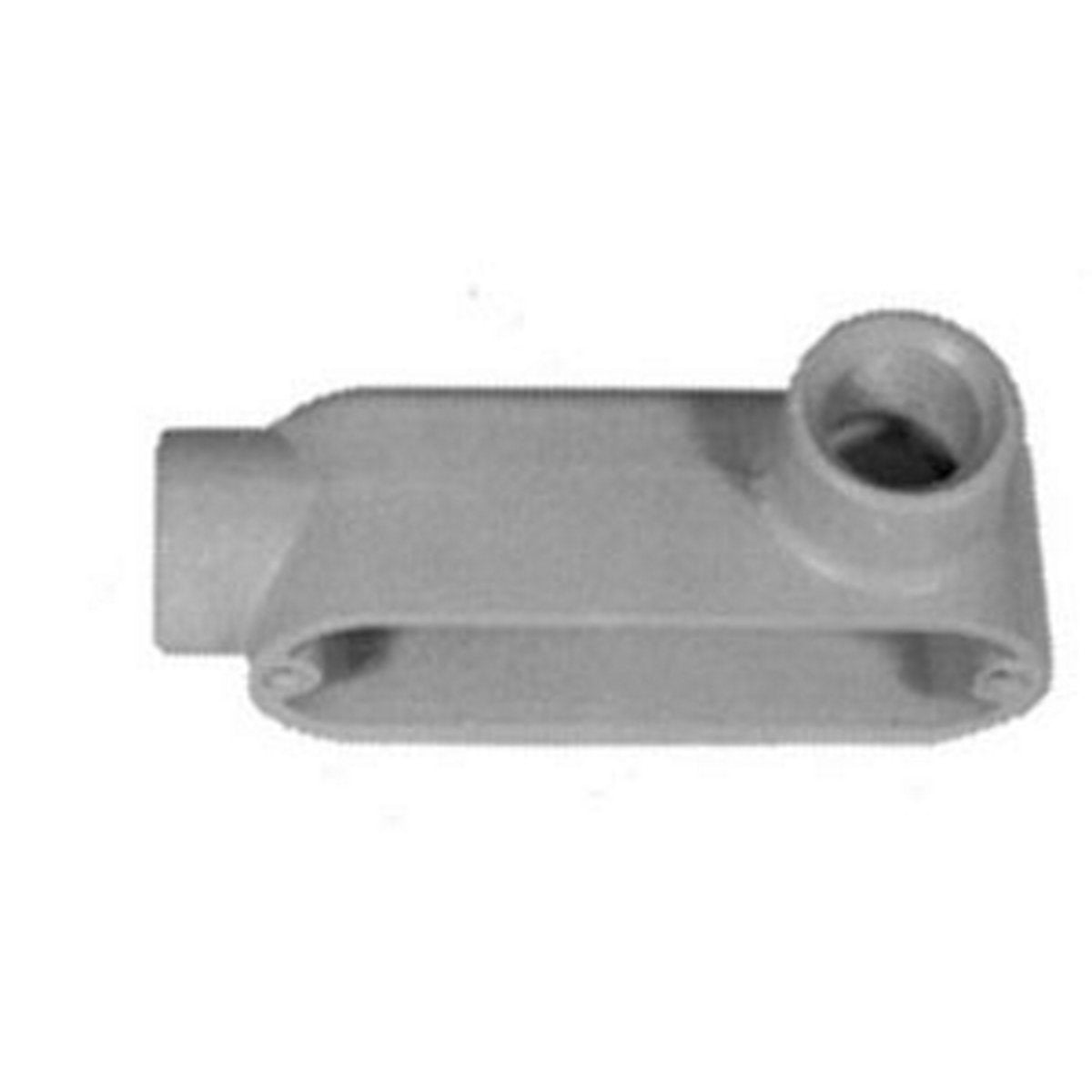

The Appleton LR100A is a type LR conduit outlet body made of pressure cast aluminum. This model is part of the UNILET FORM 85 series and features a hub size of one inch. The length is six inches, and it has a width of two point six three inches. This fitting is designed to connect rigid steel and aluminum conduits, as well as IMC and EMT conduit systems.

• Constructed from pressure cast aluminum
• Hub size of one inch
• Meets UL 514A and UL 514B standards

Product Highlights

This outlet body has threaded connections for easy installation. The epoxy powder coat finish offers added protection against corrosion, making it suitable for various environments.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: LR100A
• Connection: Tapered female threaded
• Material: Pressure cast aluminum
• Finish: Epoxy powder coat
• Length: 6 inches
• Width: 2.63 inches
• Hub Size: 1 inch
• Application: For use with rigid steel, rigid aluminum conduit, IMC, and EMT
