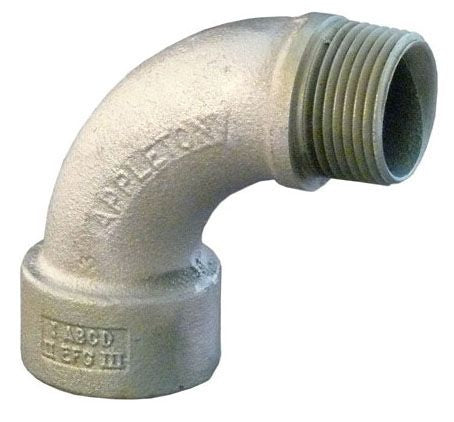

Appleton LMFL90-100 1 in Malleable Iron Bushed 90 Elbow

Product Description

The Appleton LMFL90-100 is a 1-inch malleable iron bushed 90-degree elbow fitting used in electrical conduit systems. It provides a right-angle change of direction in threaded conduit runs and accepts a bushed entry to accommodate wiring transitions between different trade sizes. Malleable iron construction delivers the mechanical strength and thread integrity required in industrial, commercial, and heavy-duty electrical installations. This type of fitting is a standard component in rigid metal conduit and IMC systems where directional routing around obstructions or structural elements is required.

This fitting is suited for use in commercial and industrial electrical installations where rigid or intermediate metal conduit must make a 90-degree turn. Electricians install it in exposed conduit runs, embedded in concrete, or in areas subject to mechanical stress where plastic fittings are not acceptable. The bushed design allows the fitting to serve as a reducing elbow, connecting conduit or fittings of differing thread sizes at the same junction.

Key Features

• 90-degree elbow geometry for right-angle conduit routing
• 1-inch trade size with bushed inlet to accommodate size transitions
• Malleable iron construction for high mechanical strength and durability
• Threaded connections compatible with standard rigid conduit and IMC thread patterns
• Suitable for exposed, embedded, and mechanically demanding installation environments

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 1-inch rigid metal conduit and intermediate metal conduit systems in commercial and industrial electrical applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the affected conduit run before beginning work. Apply listed thread lubricant or thread sealant appropriate for metal conduit fittings and tighten connections to full thread engagement without over-stressing the fitting body. Inspect threads on both the fitting and conduit ends before assembly to ensure clean, undamaged engagement.

Technical Specifications

• Trade Size: 1 inch
• Material: Malleable iron
• Elbow Angle: 90 degrees
• Connection Type: Threaded (bushed)
• UPC: 78138148120

Standard Information

• Brand: Appleton
• Manufacturer Part Number: LMFL90-100
