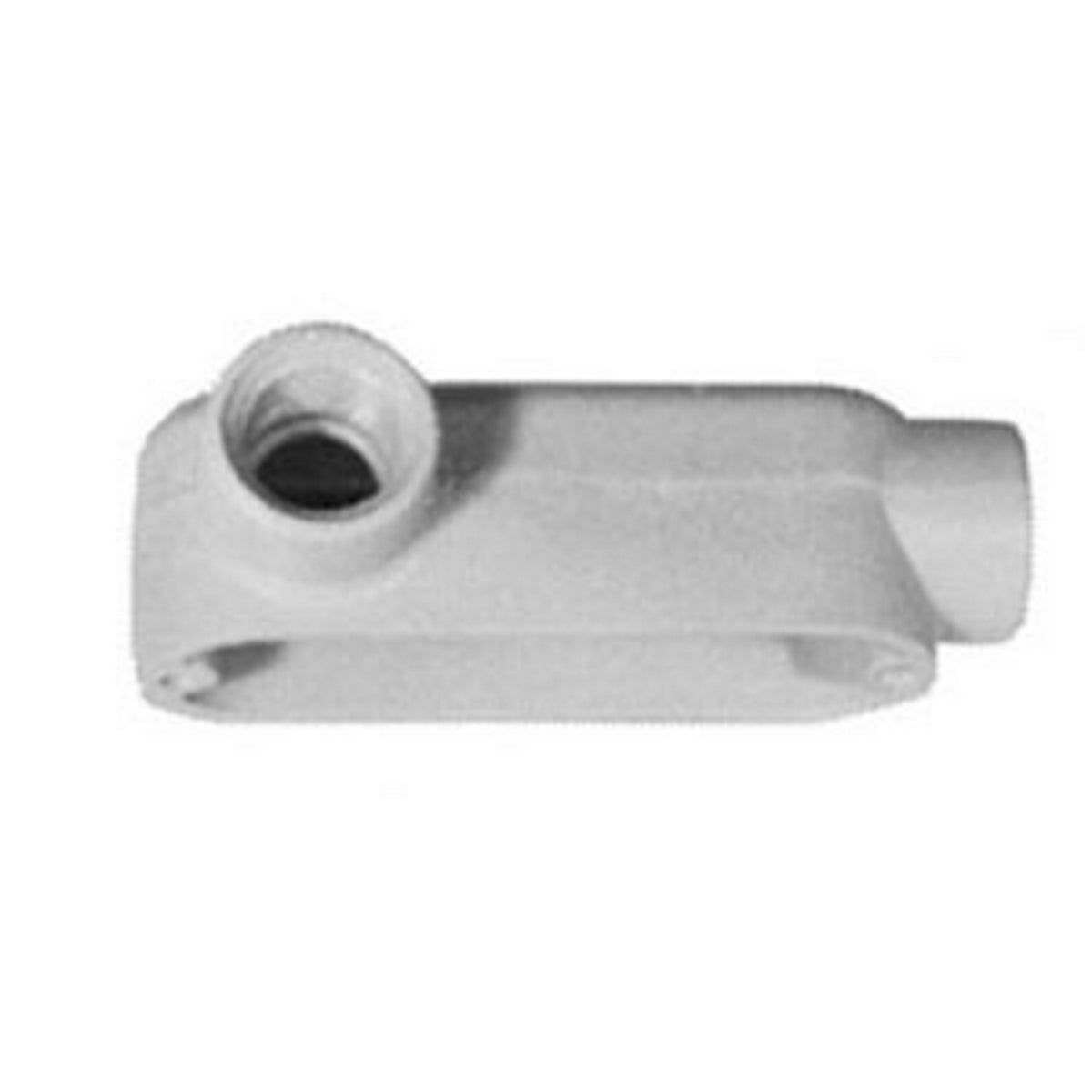

Appleton LL75A BODY OUT CONDUIT 3/4IN 2 7CU-IN

Product Description

The Appleton LL75A is a conduit outlet body designed for use in electrical installations. This product features two hubs and a three quarter inch hub size, providing a capacity of seven cubic inches. Constructed from pressure cast aluminum, it is finished with epoxy powder coat for enhanced durability.

• Form 85 design for maximum reliability
• Roomy interior for ample wiring space
• Tapered female threaded connection type

Product Highlights

The Appleton LL75A Conduit Outlet Body serves as an effective solution for connecting and changing direction in conduit runs. It allows for branch connections and provides access for maintenance and splicing of conductors. This product is suitable for various conduit systems including rigid steel and aluminum.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer Part No: LL75A

Technical Specifications

• Form: Form 85
• Type: LL
• Finish: Epoxy Powder Coated
• Capacity: 7 cu-in
• Hub Size: 3/4 in
• Enclosure: NEMA FB-1
• Dimensions: 5.13 in L x 2.25 in W x 2.44 in H
• Material: Pressure Cast Aluminum
