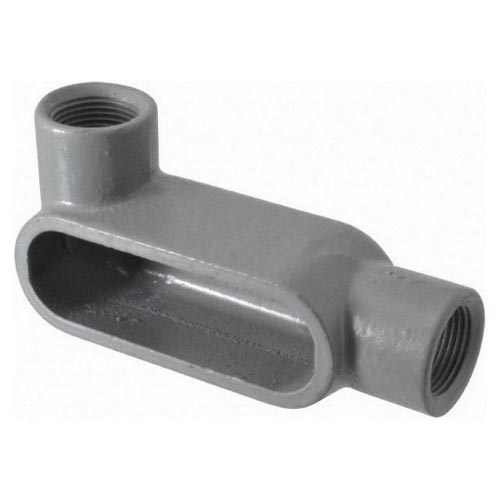

Appleton LL67 Type LL Conduit Outlet Body 2 in Hub Form 7 50 cu-in Capacity

Product Description

The Appleton LL67 Type LL Conduit Outlet Body provides a reliable solution for conduit applications. This product features a two-inch hub and Form 7 design for effective installation. It has a capacity of fifty cubic inches, making it suitable for various wiring tasks in electrical systems.

• Flat back design enhances wiring capacity
• Interchanges with other manufacturers' Form 7 conduit bodies
• Clearly marked internal volume for ease of use

Product Highlights

The LL67 is designed for use with rigid steel, rigid aluminum conduit, and IMC.

Product Information

Standard Information

• Brand: Appleton
• Part Number: LL67

Technical Specifications

• Application: Rigid/IMC Conduit Applications
• Capacity: 50 cu-in
• Color: Gray
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Dimensions: 8.13 in L x 4.06 in W x 4.25 in H
• Enclosure: NEMA FB-1/FB-2.10
• Finish: Aluminum Enamel/Zinc Electroplated
• Form: Form 7
• Hub Size: 2 in
• Material: Grayloy Iron
• Mfg Standards/Approvals: UL 514A, C22.2, Federal Specification A-A-50563
• Mounting Type: Surface
• Number of Hubs: 2
• Warranty: Limited
