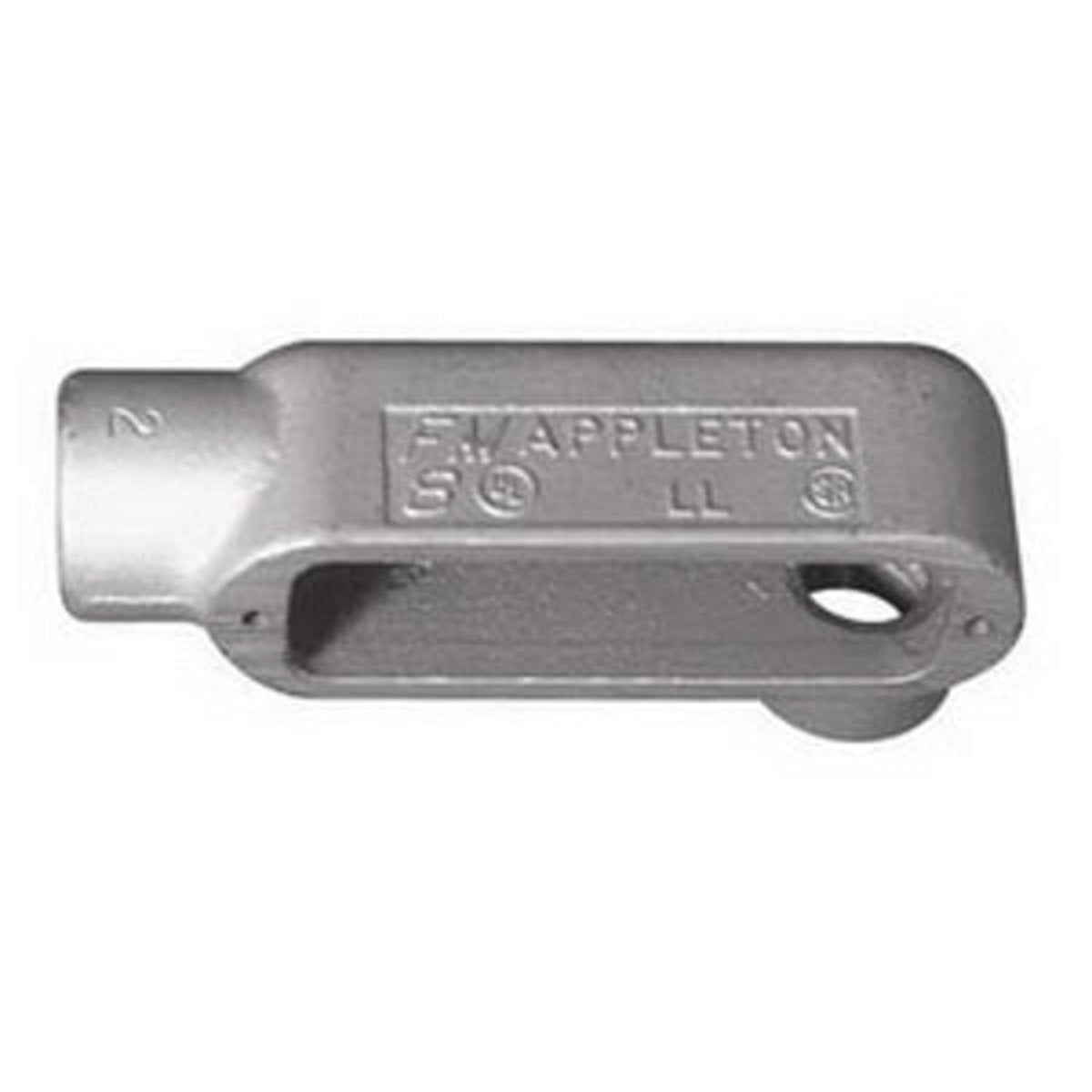

Appleton LL58 Conduit Outlet Body, Type LL, 1-1/2 in Hub, 2 Hubs, 42.5 cu-in Capacity, Form 8 Form, NEMA FB-1 Enclosure

Product Description

The Appleton LL58 is a conduit outlet body designed for use with rigid steel conduit and IMC. This model features a hub size of one and one-half inches and includes two hubs. With a wiring capacity of forty-two and a half cubic inches, this outlet body is suitable for various applications in electrical installations. The construction is made of grayloy-iron and is finished with a triple-coat system that offers exceptional durability.

• Hub Size: 1-1/2 inches
• Capacity: 42.5 cu-in
• Material: Grayloy-Iron

Product Highlights

This outlet body serves multiple purposes including pulling fittings, making bends in the conduit system, and providing openings for splicing. Smooth rounded integral bushings in the hubs protect conductor insulation.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Application: For use with rigid steel conduit and IMC

Technical Specifications

• Catalog Number: LL58
• Brand: Appleton
• Hub Size: 1-1/2 inches
• Material: Grayloy-Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Length: 9.13 inches
• Width: 4.03 inches
• Special Features: Serves as pulling fittings; allows connection and direction change of conduit runs; provides access for maintenance.
