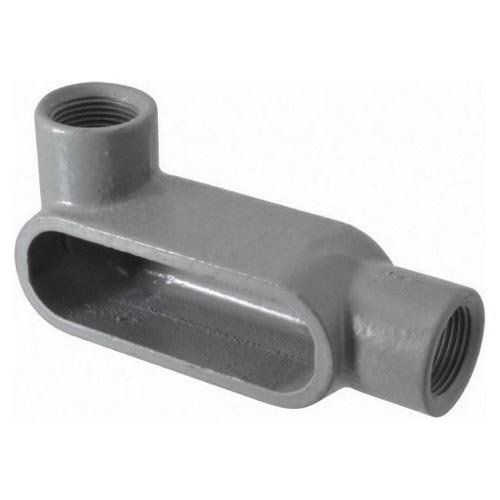

Appleton LL47 Type LL Conduit Outlet Body, 1-1/4 in Hub, Form 7 Form, 20 cu-in Capacity

Product Description

The Appleton LL47 is a Type LL Conduit Outlet Body designed for Rigid/IMC conduit applications. The MPN is LL47. It features a flat back design for easier surface mounting and greater wiring capacity.

• Flat back design for wiring efficiency
• Compatible with Form 7 conduit bodies from other manufacturers
• Internal volume and maximum wire capacity marked on the casting

Product Highlights

This outlet body includes access openings on the left side, ensuring ease of installation.

Product Information

Standard Information

• Brand: Appleton
• MPN: LL47

Technical Specifications

• Application: Rigid/IMC Conduit Applications
• Capacity: 20 cu-in
• Dimensions: 6.5 inches long x 3.19 inches wide x 3.31 inches high
• Hub Size: 1-1/4 inches
• Material: Grayloy Iron
• Finish: Aluminum Enamel/Zinc Electroplated
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Mounting Type: Surface
• Form: Form 7
• Number of Hubs: 2
• Warranty: Limited
