Appleton LL448 1-1/4 CND BDY

Product Description

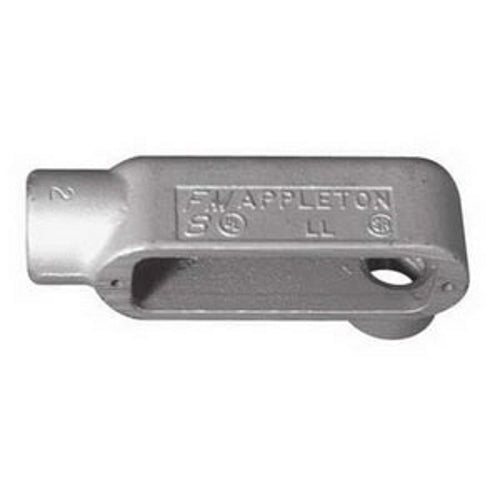

The Appleton LL448 is a conduit body designed for use with rigid steel conduit and intermediate metal conduit (IMC). This product is built from grayloy-iron and features a triple-coat finish, ensuring durability and resistance to various weather conditions. The access opening is located on the left side, and it includes two hubs with a hub size of one and one-quarter inches.

• Hub Size: One and one-quarter inches
• Material: Grayloy-Iron
• Application: Suitable for rigid steel conduit and IMC

Product Highlights

Offers various advantages including the capacity to serve as pulling fittings and to provide openings for splices in conduit systems.

Product Information

Standard Information

• Manufacturer: Appleton
• Family Group: Fittings

Technical Specifications

• Type: Type LL Conduit Outlet Body
• Color: Gray
• Finish: Triple-Coat (Zinc Electroplate; Chromate and Epoxy Powder Coat)
• Connection: Tapered Female Threaded
• Standard: UL 514A; UL 514B; CSA C22.2 No. 18.3
• Weight: Three point five pounds
• Dimensions: Seven point five inches long x three point thirteen inches
• Number of Hubs: Two
