Appleton LL37SA 1 FM7 BODY TYPE LL-ALUM Power (Size/Quantity/Pack/Angle) Replacement MPN

Product Description

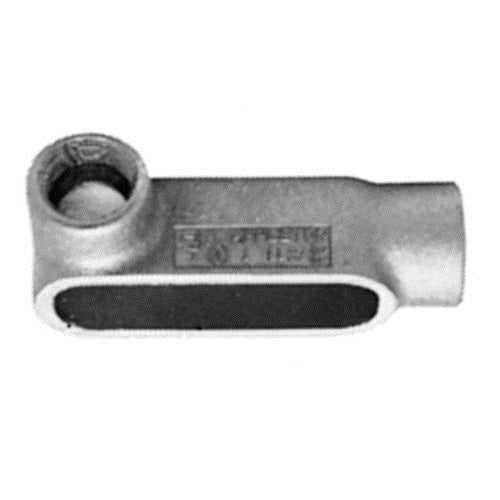

The Appleton LL37SA is a FM7 UNILETS Type LL conduit outlet body designed for effective conduit connections. This outlet body has a hub size of one inch and a length of six inches with a width of two and three-fourths inches. Constructed from aluminum, it features an epoxy powder coat finish. The connection type is tapered female threaded, complying with UL 514A, UL 514B, and CSA standards.

• Hub Size: 1 inch
• Material: Aluminum
• Connection: Tapered Female Threaded

Product Highlights

This outlet body is suitable for use with rigid steel, rigid aluminum conduit, and intermediate metal conduit (IMC). It serves multiple purposes including making bends in conduit systems, providing openings for splicing, and allowing connections for branch runs.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: LL37SA
• Form: 7
• Length: 6 inches
• Width: 2-3/4 inches
• Finish: Epoxy Powder Coat
• Hub Size: 1 inch
• Material: Aluminum
• Standard: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, NEMA FB-1
