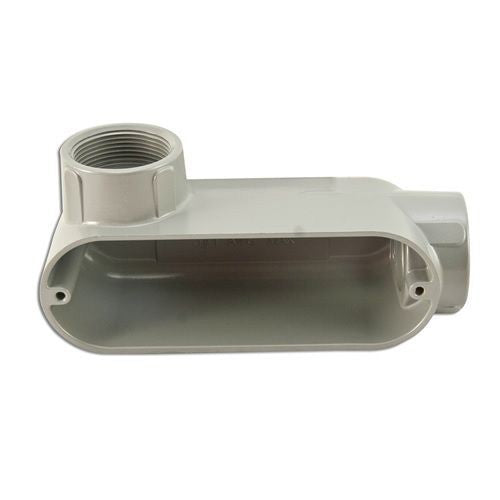

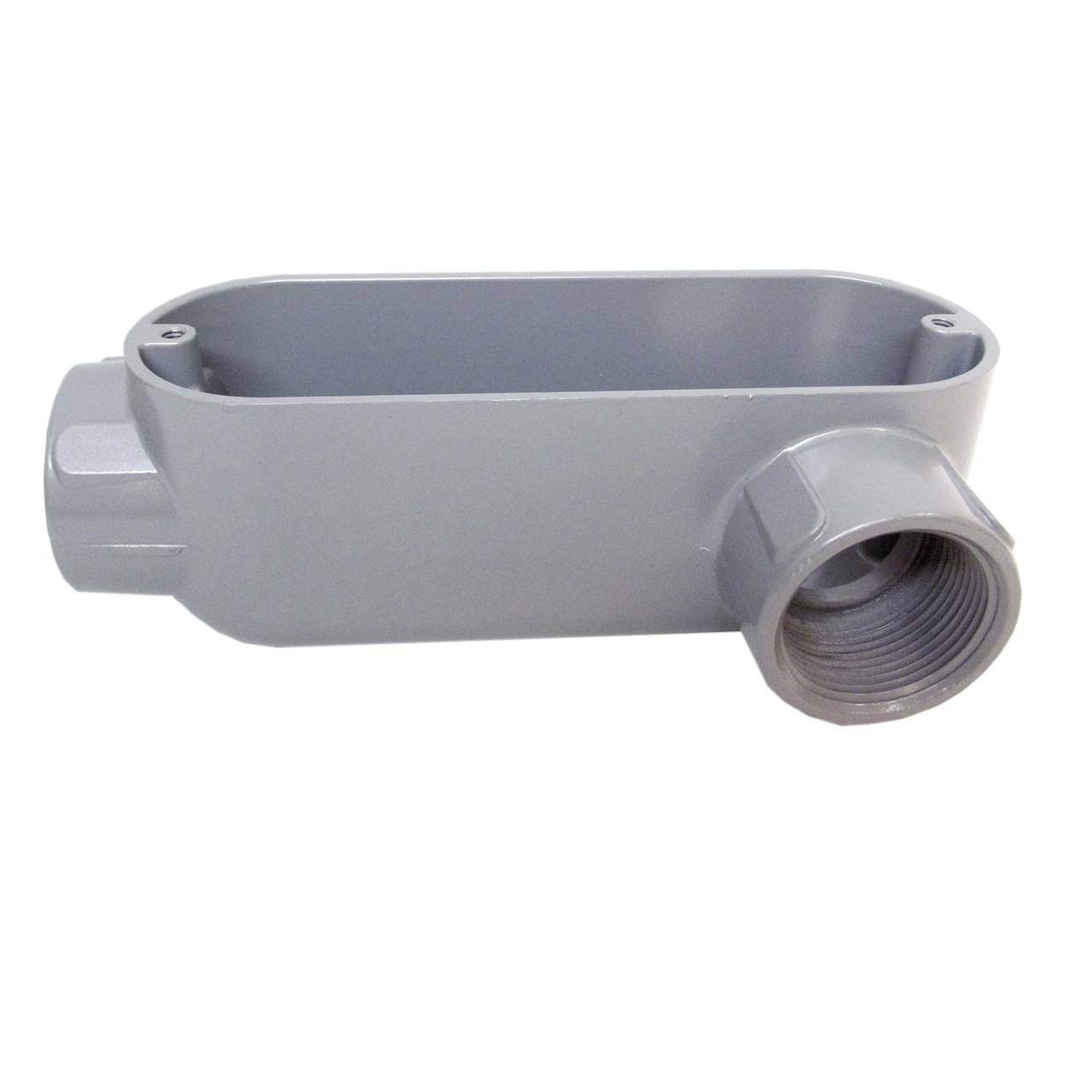

Appleton LL200A Unilets Type LL Conduit Outlet Body 2 in Hub

Product Description

The APPLETON LL200A UNILETS Type LL Conduit Outlet Body with a 2-inch hub provides ample room for pulling cables and wiring connections. Accurately tapped tapered threads ensure tight, rigid joints and excellent ground continuity. It allows connections for branch runs and serves as a pulling fitting, permitting access to conductors for splicing and maintenance.

• Smooth, rounded integral bushing in each hub protects conductor insulation
• Form 85 copper free aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance
• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity

Product Highlights

This aluminum conduit body is corrosion-resistant and suitable for use with rigid steel, rigid aluminum, and IMC conduit.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: LL200A
• Country of Origin: United States

Technical Specifications

• Hub Size: 2 in
• Material: Aluminum
• Mounting Type: Surface
• Number of Hubs: 2
• Capacity: 70 cu-in
• Connection Type: FNPT
• Enclosure: NEMA FB-1
• Finish: Epoxy Powder Coated
• Form: 85
• Type: Type LL
• Application: To provide openings for splicing and connecting and changing direction of conduit runs
• Standard & Approvals: UL 514A, 514B, E2527 Listed, CSA 065183/C22.2 NO 18.3 Certified, RoHS Compliant
• Catalog ID: APPLL200-A
• Part Number: LL200A
• Manufacturer: Emerson
• Brand: Appleton
• Category: Conduit & Fittings
• Item Subcategory: Conduit Fittings
• Applications: For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT
• Split Crucible: S
• TC Connection: Tapered Female Threaded
• Sub Brand: UNILETS
• Length: 10.19 Inch
• Width: 4.19 in
• UPC: 78138148045
• Country of Origin: United States
• Hub Size (inches): 2"
