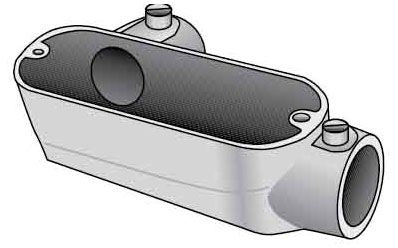

Appleton LL125ATW 1-1/4 in Aluminum Ll Emt Conduit Body

Product Description

The APPLETON LL125ATW is a 1-1/4 inch aluminum LL-type conduit body designed for use with EMT (electrical metallic tubing) raceway systems. Conduit bodies of this type provide access points for wire pulling, splicing, and directional changes within an EMT run. The LL configuration delivers a 90-degree horizontal turn to the left, allowing installers to route conductors around corners while maintaining code-compliant wire-fill capacity. Constructed from aluminum, this conduit body offers a lightweight, corrosion-resistant option suited for both indoor and protected outdoor electrical installations. Licensed electricians install this fitting as part of branch circuit and feeder wiring systems in commercial and residential construction.

The LL125ATW is used in EMT conduit systems requiring a left-turn 90-degree change of direction. Typical applications include commercial buildings, industrial facilities, and residential service installations where EMT is the raceway of choice. It is appropriate for use in dry or damp locations where aluminum conduit fittings are code-permitted. Electricians commonly use LL conduit bodies at wall corners, above dropped ceilings, and in exposed conduit runs where access for conductor pulling is required.

Key Features

• LL-type body provides a 90-degree left-turn horizontal direction change in an EMT raceway run
• 1-1/4 inch trade size accommodates standard 1-1/4 inch EMT conduit
• Aluminum construction delivers lightweight handling and corrosion resistance
• Removable cover plate allows access for wire pulling and conductor inspection
• Designed for use in dry and damp location conduit systems

Compatibility

Designed as an OEM-style fitting for use with 1-1/4 inch EMT conduit systems in standard electrical raceway installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the raceway before opening the conduit body or pulling conductors. Secure all conduit connections to the conduit body fittings before pulling wire to avoid conductor damage. Do not exceed the conduit fill capacity specified by NEC Chapter 9 tables for the conductor size and quantity being installed.

Technical Specifications

• Trade Size: 1-1/4 inches
• Body Type: LL (90-degree left turn)
• Raceway Type: EMT
• Material: Aluminum
• Package Dimensions (L x W x H): 8.6 inches x 6.6 inches x 2.05 inches
• Weight: 1.05 pounds
• UPC: 78312638104

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: LL125ATW
