Appleton LL125-M BODY OUT CONDUIT 1-1/4IN 2 32CU-IN SURF

Product Description

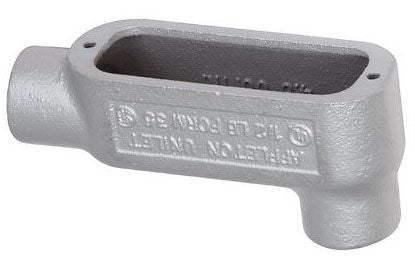

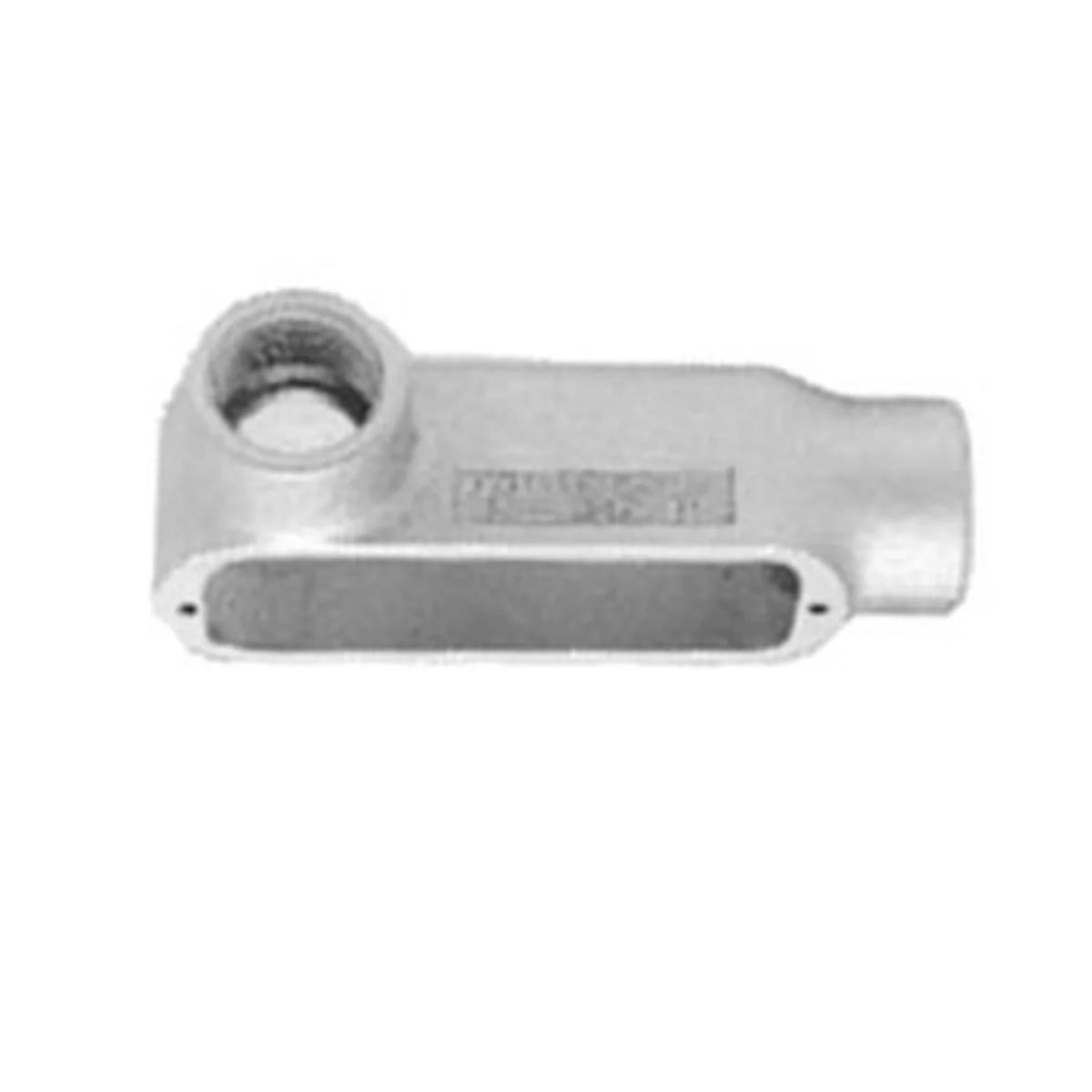

The Appleton LL125-M Conduit Outlet Body is designed for effective use in electrical installations. This Item features a hub size of one and one-quarter inches and is built to connect and change direction of conduit runs, allowing for branch run connections.

• Malleable iron construction with triple coated finish for durability
• 32 cubic inch capacity for various applications
• Surface mounting with tapered FNPT connection

Product Highlights

This conduit body is ideal for splicing and maintaining conductors, ensuring reliable performance in electrical conduit systems.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer Part Number: LL125-M

Technical Specifications

• Material: Malleable Iron
• Finish: Triple Coated
• Hub Size: 1-1/4 inches
• Enclosure Type: NEMA FB-1
• Dimensions: 8.19 inches length x 3.5 inches width x 3.56 inches height
• Capacity: 32 cubic inches
• Number of Hubs: 2
• Mounting Type: Surface
• Connection Type: Tapered FNPT
