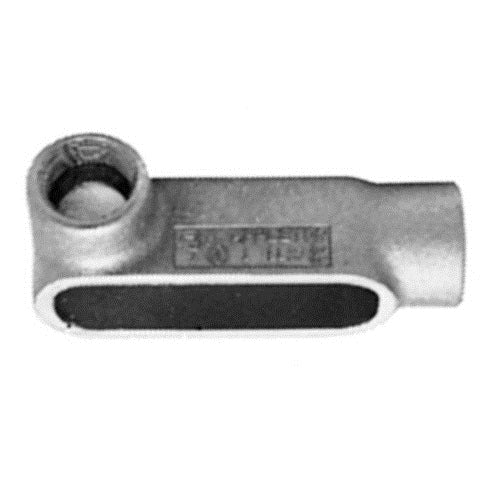

Appleton LL107 Type LL Conduit Outlet Body, 4 in Hub, Form 7, 244 cu-in, Grayloy Iron

Product Description

The Appleton LL107 is a Type LL conduit outlet body designed for use with rigid steel, aluminum, and IMC conduit. This product features a four-inch hub and has a cubic capacity of two hundred forty-four cubic inches. The LL107 is manufactured from Grayloy iron, making it suitable for wet environments.

• Smooth integral bushing in hubs protects conductor insulation
• Accurate tapered threads promote tight joints and continuity
• Compatible with Crouse-Hinds Form 7 components

Product Highlights

This conduit body is designed for reliable connection and management of electrical wiring. Its unique design allows for easy access and maintenance, especially in tight spaces.

Product Information

Standard Information

• Brand: Appleton
• Application: For Rigid Steel/Aluminum and IMC Conduit

Technical Specifications

• Capacity: 244 cu-in
• Hub Size: 4 in
• Material: Grayloy Iron
• Dimensions: 12.69 in L x 6.94 in W x 7.06 in H
• Finish: Triple Coated
• Enclosure: NEMA FB-1
• Mounting Type: Surface
• Number of Hubs: 2
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Mfg Standards/Approvals: ARRA, Buy American Act and RoHS Compliant, UL 514A/514B/E2527, C22.2 No. 18.3/065183 Certified
• Warranty: Limited
