Product Description

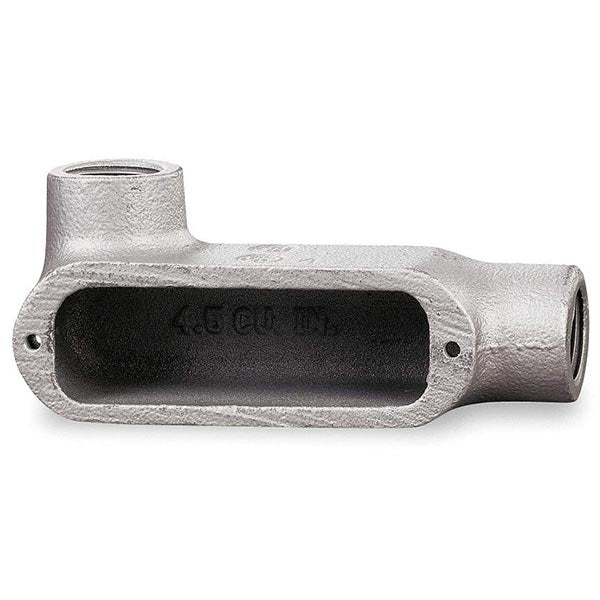

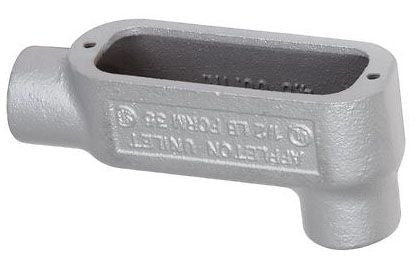

The Appleton LL100-M is a Type LL conduit body designed for 1-inch hub size. This conduit body is made from malleable iron and features a triple-coat finish, which includes zinc electroplate, chromate, and epoxy powder coat. It is suitable for use with rigid steel and aluminum conduit and is ideal for connecting, changing direction, and providing access to conductors for maintenance.
- Hub size: 1 inch
- Material: Malleable iron
- Installation: Threaded
Product Highlights
This product provides high tensile strength and excellent corrosion resistance. It includes features such as rounded integral bushings, accurately tapped threads, and a flat-back design, making it effective for various applications.
Product Information
Standard Information
-
Manufacturer: Appleton Electric
-
Brand: Appleton
Technical Specifications
-
Form Type: 35
-
Dimensions: 6.25 inches length x 2.56 inches width
-
Connection: Tapered female threaded
-
Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
-
Capacity: 12.5 cu-in
-
Country of Origin: Mexico
-
Approval: UL 514A, UL 514B, CSA C22.2
-
Standard: NEMA FB-1
