Appleton LL-100 LL-Type Conduit Outlet Body 1 in

Product Description

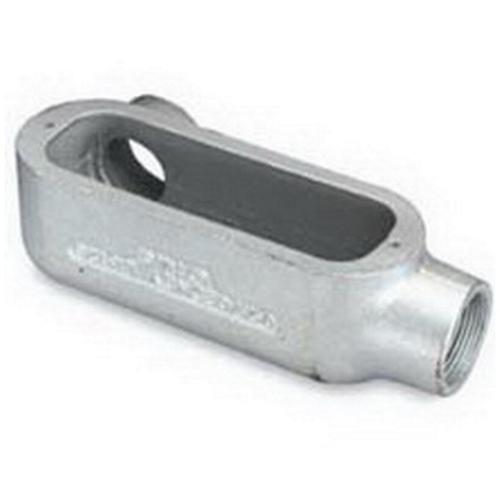

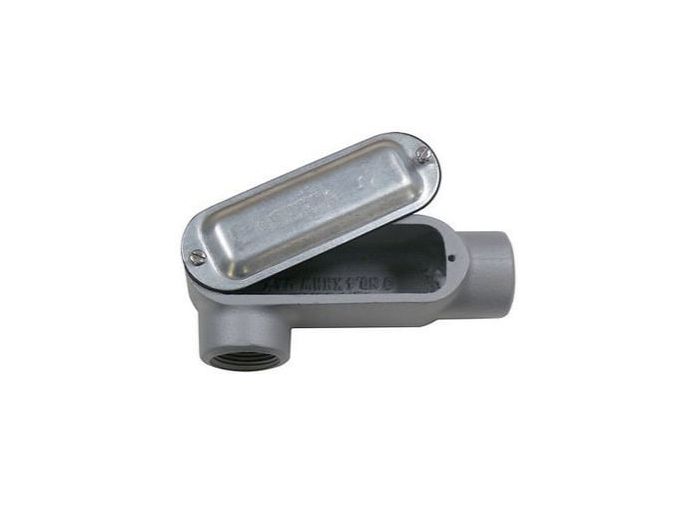

The APPLETON LL-100 is a 1" LL-type conduit outlet body designed for connecting and changing direction in rigid conduit systems. Constructed from malleable iron, this conduit body features a NEMA FB-1 enclosure and a triple-coated finish for enhanced corrosion resistance. It serves as a pulling fitting and allows for conductor access and splicing.

• Designed for connecting and changing direction in rigid conduit systems
• Features a NEMA FB-1 enclosure rating
• Suitable for commercial and industrial applications

Product Highlights

The LL100 is ideal for use in rigid conduit systems where durability and reliability are essential.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: LL-100

Technical Specifications

• Capacity: 12 cu-in
• Enclosure: NEMA FB-1
• Finish: Aluminum Enamel/Zinc Electroplated
• Hub Size: 1 in
• Type: Type LL
• Connection type: Tapered FNPT
• Material: Malleable Iron
• Manufacturer Name: Emerson Electric
• UNSPSC: 39131708
• Part Number: LL100
• Manufacturer: Appleton
• Wiring Capacity: 12.5 cu-in
• Form: 35
• Application: Conduit direction change, pulling, splicing
• Certifications: CSA, UL
• Category: Conduit & Fittings
• Item Subcategory: Conduit body (LB/LL/LR) / cover
• Product Series: Spec 5
• Family Series: Appleton Conduit Outlet Bodies, Spec 5 Series
• Description: 1 IN LL IRON COND BDY
• Style: Threaded Iron
• Shape: LL
• Number of Hubs: 2
• Cover Included: No
• Gasket Included: No
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Trade Size: 1 "
• Composition: Iron
• Hazardous Location: Yes
