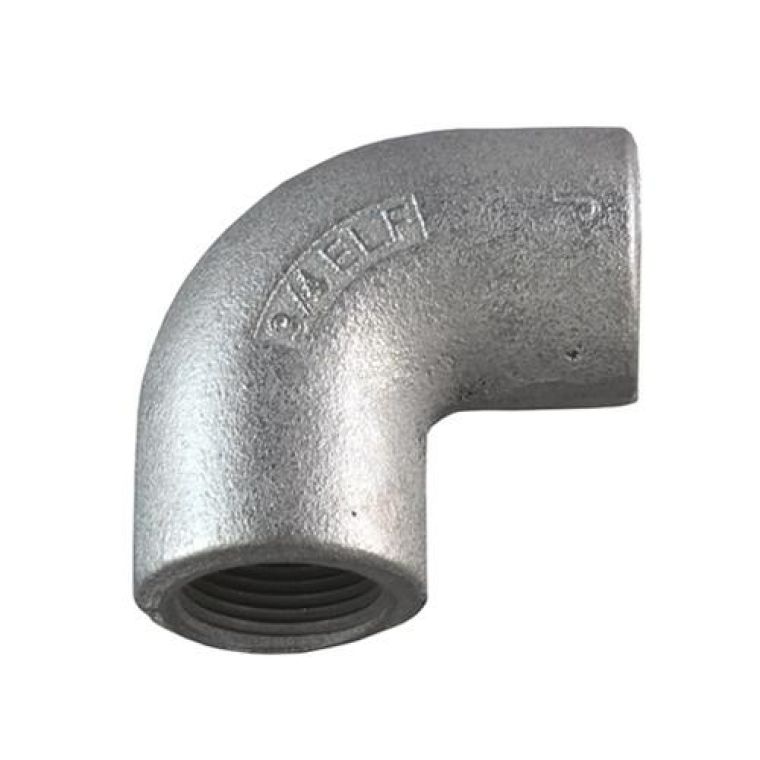

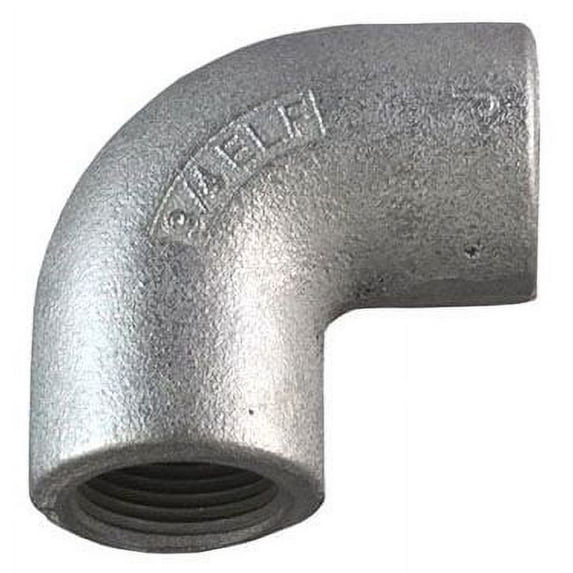

Appleton LF90-75 elbow 3/4 in 90 deg

Product Description

The APPLETON LF90-75 is a short bushed elbow designed for threaded rigid/IMC conduit systems. This 90-degree elbow is made from malleable iron with a triple coated finish. It provides a 90-degree change of direction in conduit runs and ensures ground continuity. Suitable for commercial and industrial applications.

• Provide a 90 deg change of direction in a conduit run
• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity

Product Highlights

Durable malleable iron elbow with triple coated finish for reliable conduit installations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: LF90-75
• Country of Origin: US

Technical Specifications

• Angle: 90 deg
• Finish: Triple Coated
• Material: Malleable Iron
• Trade Size: 3/4 in
• Suitable For Use With: Threaded Rigid/IMC Conduit
• Installation: Threaded Female/Female
• Used On: Rigid Conduit/IMC
• Fitting Type: Elbow
• Hazard Rating: Dust-Ignitionproof / Explosionproof
• Hazard Rating Specs: Class I, Division 1, Groups A, B, C, D, Class III, Class II, Division 1, Groups E, F, G
• Specifications Met: Class III, UL 514B, NEC Certified, CEC Certified, Class II, Div 1 and 2, Groups E, F, G, CSA 065178, CSA C22.2 No. 18.3, UL File No. E-14814, UL Listed for Class I, Div 1 and 2, Groups A, B, C, D
• Conduit Type: RMC / IMC
• Fitting Subtype: Short Bushed Female
• Connection Orientation: 90 deg
