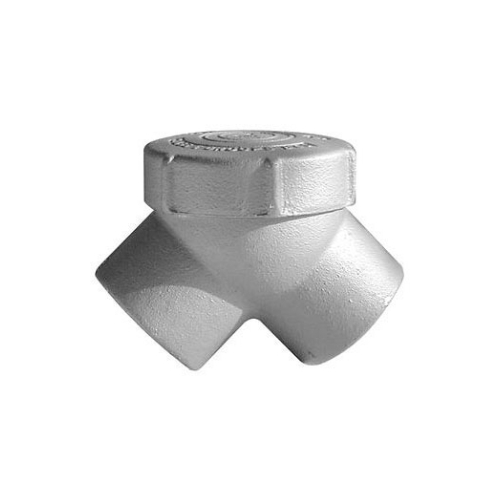

Appleton LBY-100 Conduit Elbow 90 deg

Product Description

The APPLETON LBY-100 conduit elbow provides a 90 deg change in direction in hazardous and ordinary locations where accessibility is needed for pulling conductors. It features a screw-on cover for ease of installation and removal. The cover opens on an angle permitting conductors to be pulled straight through either hub. It is suitable for use with threaded IMC/rigid conduit.

• Provides a 90 deg change in direction in hazardous and ordinary locations where accessibility is needed for pulling conductors
• Screw-on cover for ease of installation and removal
• Cover opens on an angle permitting conductors to be pulled straight through either hub

Product Highlights

This conduit elbow is designed for hazardous locations and allows for 90-degree turns in conduit runs. It features female tapered threaded hubs (NPT) for rigid conduit and IMC.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: LBY-100
• Country of Origin: MX

Technical Specifications

• Brand: Appleton
• Part Number #: LBY100
• SKU #: 2380135
• Angle: 90 deg
• Finish: Electro-Plated Zinc
• Suitable For Use With: Threaded IMC/Rigid Conduit
• Trade Size: 1 in
• Type: Type LBY Explosionproof Short Capped
• Material: Malleable Iron
• Manufacturer Name: Emerson Electric
• UNSPSC: 39121311
• MPN: LBY-100
• UPC: 78312632902
