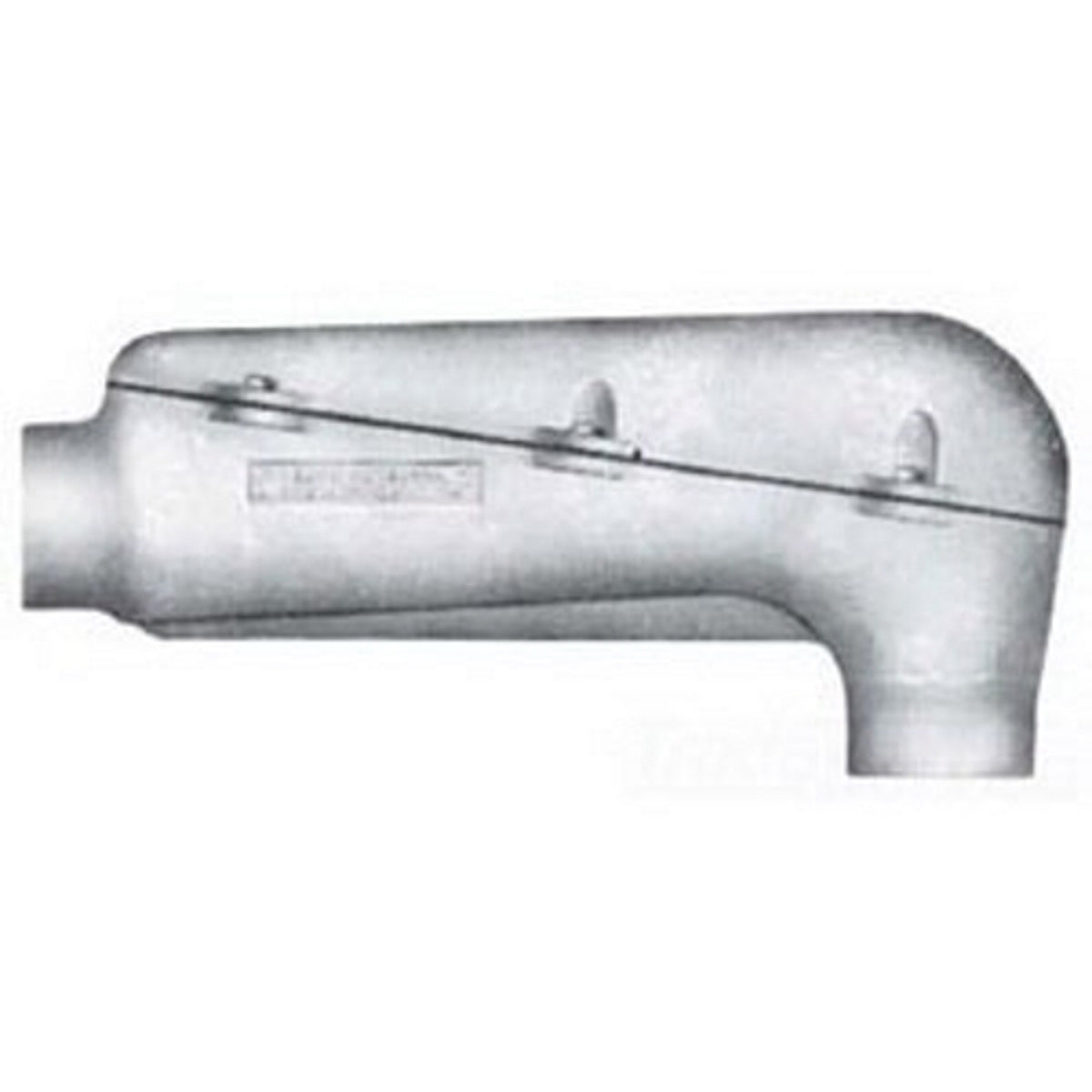

Appleton LBDN400-M Type LBDN Mogul Conduit Body with Cover & Gasket, 4 Inch

Product Description

The Appleton LBDN400-M is a type LBDN pulling fitting that features a cover and gasket. This conduit body is designed for use in rigid metal conduit and IMC applications. The fitting is constructed from malleable iron and has a triple-coat finish that includes zinc electroplate, chromate, and epoxy powder coat.

• Hub Size: 4 inches
• Dimensions: Length of twenty-seven and a half inches, width of seven inches, height of twelve and a half inches
• Connection Type: Female threaded

Product Highlights

The LBDN400-M is ideal for heavy conductors and can facilitate bends in conduit while maintaining structural integrity. It caters to industrial and commercial applications.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: LBDN400-M
• Material: Malleable iron body, neoprene gasket
• Finish: Triple-coat (Zinc electroplate, chromate, and epoxy powder coat)
• Application: For use with rigid metal conduit and IMC
• Connection: Female threaded
• Hub Size: 4 inches
• UL Standard: UL 514B, UL File Number E2527
• Special Features: Pulling fittings ideal for heavy conductors, allows for 90-degree bends in conduit
