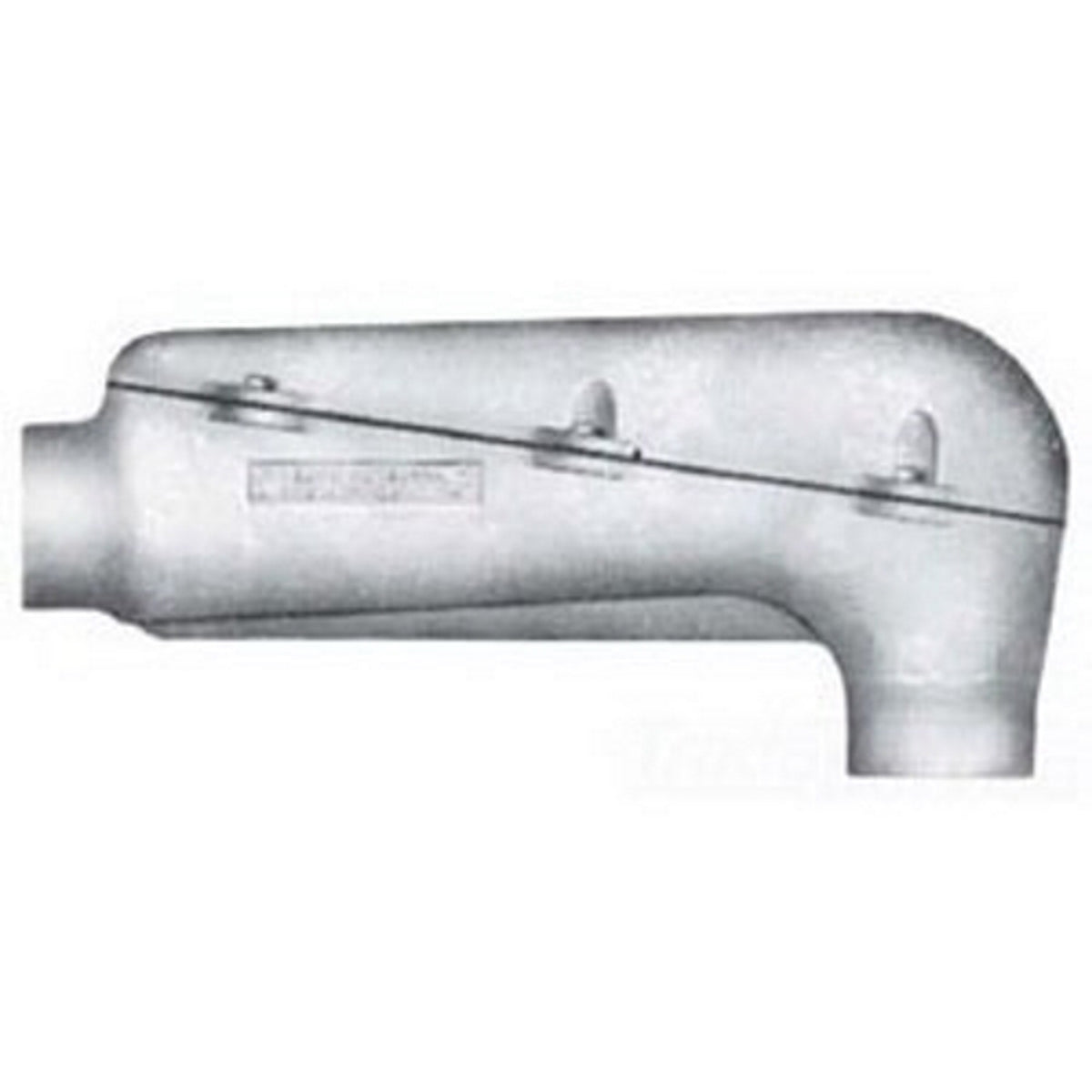

Appleton LBDN400-A Type LBDN Mogul Conduit Body, 4 Inch, Aluminum, Epoxy Powder Coated

Product Description

The Appleton LBDN400-A is a Type LBDN Mogul Conduit Body designed for use in electrical applications. It features a durable aluminum body and a neoprene gasket, ensuring a reliable connection for conduit systems. The product boasts a threaded female connection and is suitable for installation with rigid metal conduit and intermediate metal conduit (IMC).

• Material: Aluminum with epoxy powder coating
• Dimensions: Length twenty-seven and one-half inches, Width seven inches, Height twelve and one-half inches
• Hub Size: Four inches

Product Highlights

This conduit body serves as a pulling fitting ideal for heavy conductors and allows for 90-degree bends in conduit. It is equipped with gasketed covers and offers a wiring capacity of seven hundred forty cubic inches. The product meets UL 514B standards and has a UL file number of E2527.

Product Information

Standard Information

• Catalog Number: LBDN400-A
• Manufacturer: Appleton Electric

Technical Specifications

• Material: Aluminum body, Neoprene gasket
• Finish: Epoxy powder coat
• Connection Type: Female threaded
• Hub Size: Four inches
• Length: Twenty-seven and one-half inches
• Width: Seven inches
• Height: Twelve and one-half inches
• Application: For use with rigid metal conduit and IMC
• Wiring Capacity: Seven hundred forty cubic inches
• Special Features: Pulling fitting for heavy conductors; allows for 90-degree bends; service entrance fitting
• Standard Compliance: UL 514B, UL File Number E2527
