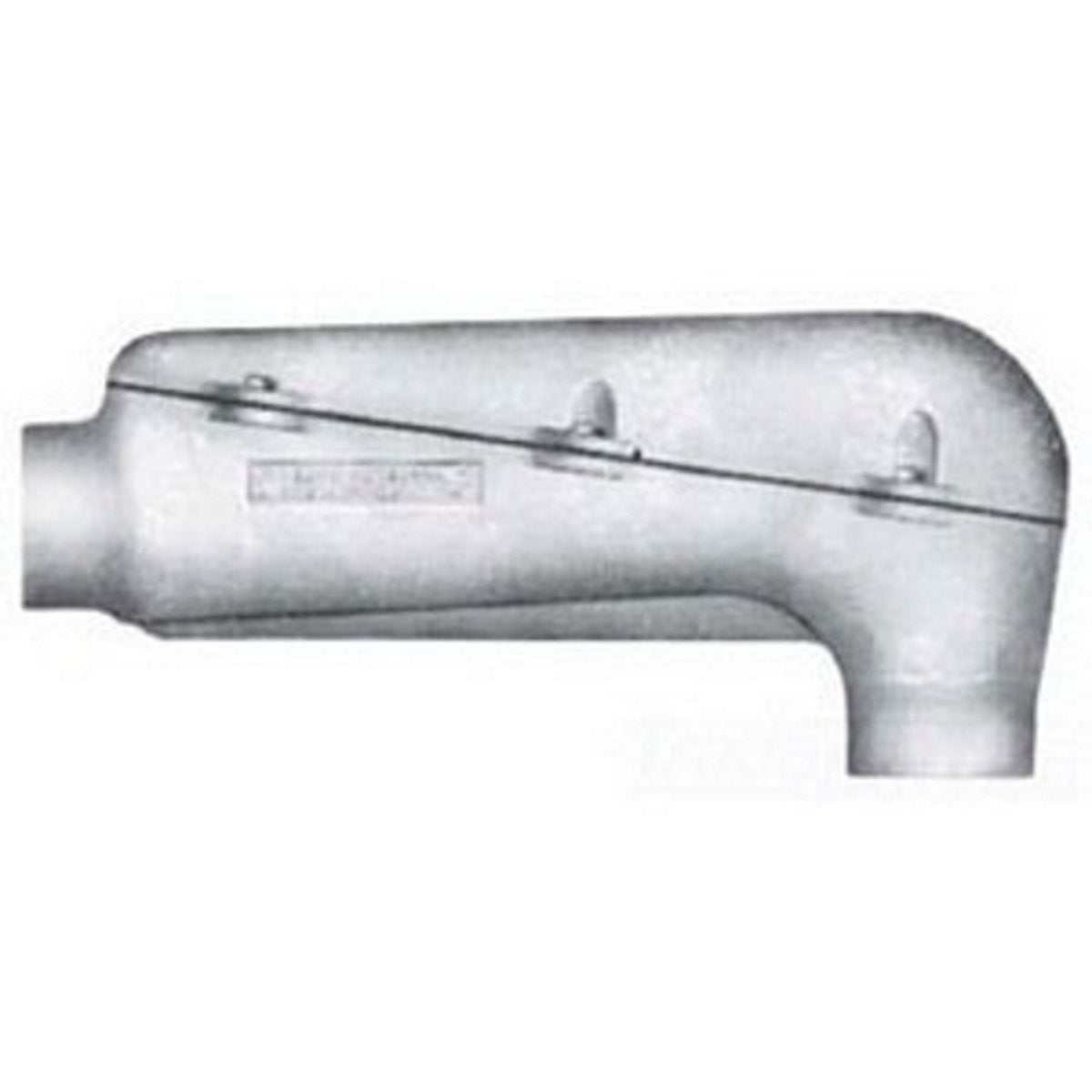

Appleton LBDN300-M Type LBDN Mogul Conduit Body with Cover & Gasket, 3 Inch

Product Description

The Appleton LBDN300-M Type LBDN Mogul conduit body is designed for use with rigid metal conduit and intermediate metal conduit (IMC). It features a hub size of three inches and is made from malleable iron, ensuring durability and strength. The conduit body includes a cover and gasket, making it suitable for various applications.

• Hub Size: Three inches
• Material: Malleable iron with neoprene gasket
• Finish: Triple-coat with zinc electroplate, chromate, and epoxy powder coat

Product Highlights

This conduit body serves as a pulling fitting, allowing for the installation of heavy conductors. It can make 90-degree bends in conduit, promoting flexibility in routing electrical paths.

Product Information

Standard Information

• Brand: Appleton Electric
• UPC: 781381474580

Technical Specifications

• Catalog Number: LBDN300-M
• Length: 21.06 inches
• Width: 5.88 inches
• Height: 10 inches
• Connection: Female threaded
• Application: For use with rigid metal conduit and IMC
• Special Features: Ideal for heavy conductors; designed for straight pulls; complete with gasketed covers; wiring capacity of 345 cubic inches
• Standards: UL 514B, UL File Number E2527
• Country of Origin: Mexico
