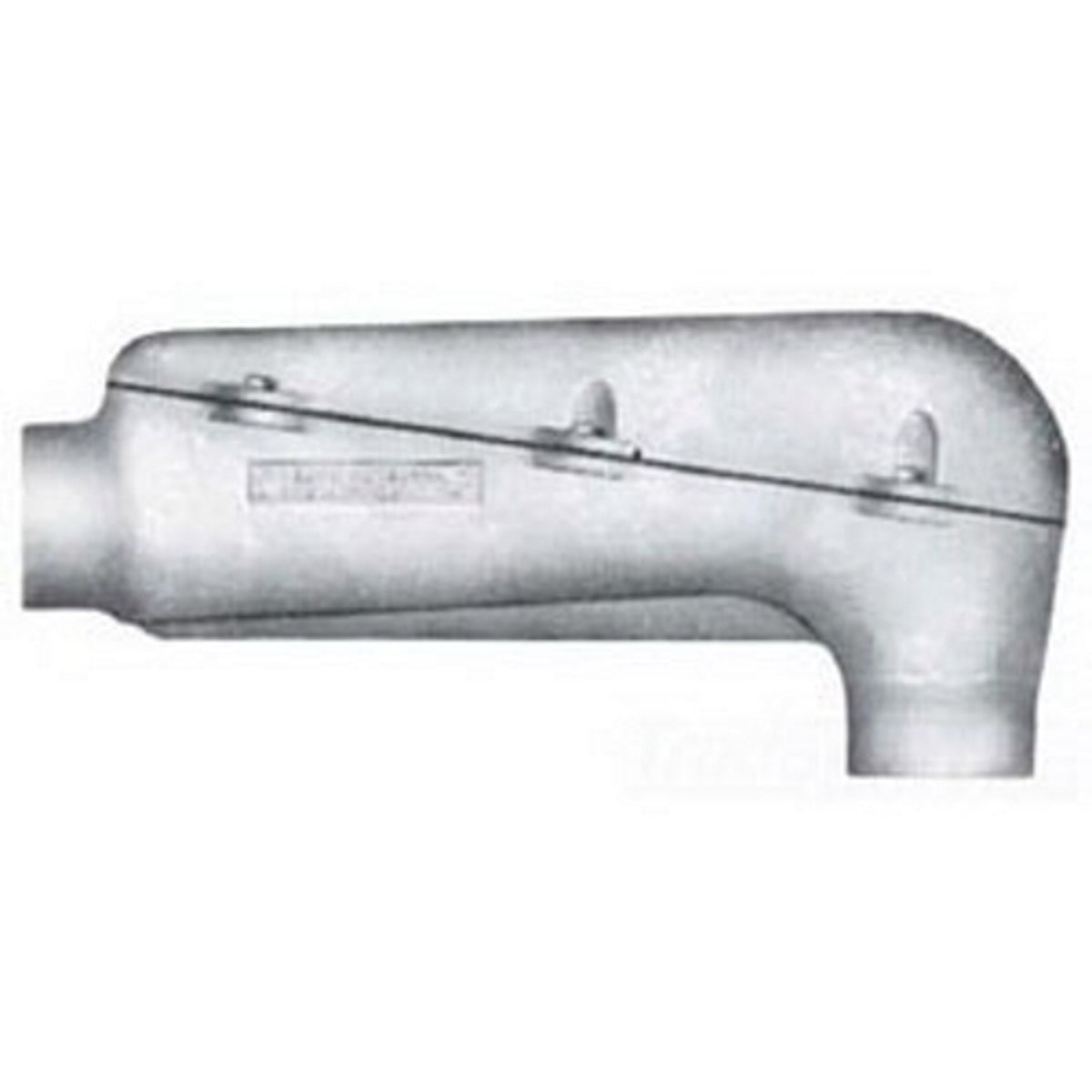

Appleton LBDN300-A Type LBDN Mogul Conduit Body 3 Inch Aluminum Epoxy Powder Coated

Product Description

The Appleton LBDN300-A is a Type LBDN mogul conduit body that measures three inches in hub size. This aluminum conduit body features an epoxy powder coat for enhanced durability. It includes a neoprene gasket for secure sealing. Ideal for use with rigid metal conduit and intermediate metal conduit (IMC), it accommodates heavy conductors while allowing for easy bends.

• Hub Size: Three inches
• Material: Aluminum body with neoprene gasket
• UL listed for safety compliance

Product Highlights

This conduit body is suitable for threaded connections and is designed to serve as a pulling fitting, making it easier to handle difficult bends in conductor pathways.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: LBDN300-A

Technical Specifications

• Material: Aluminum body, neoprene gasket
• Finish: Epoxy powder coat
• Hub Size: Three inches
• Dimensions: Length: twenty-one point zero six inches, Width: five point eight eight inches, Height: ten inches
• Application: For use with rigid metal conduit and IMC
• Connection: Female threaded
• Standard: UL 514B, UL File Number E2527
