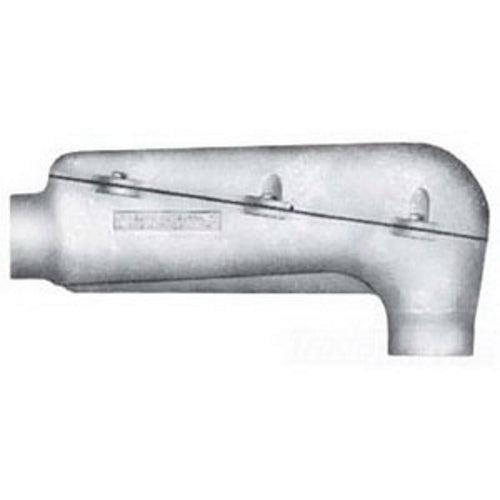

Appleton LBDN250-M Type LBDN Mogul Conduit Body with Cover & Gasket, 2-1/2 inch

Product Description

The Appleton LBDN250-M is a type LBDN conduit body designed for use with rigid metal conduit and IMC. It features a hub size of two and a half inches. This conduit body is made of malleable iron and comes with a neoprene gasket for effective sealing. Its finish includes a triple-coat of zinc electroplate, chromate, and epoxy powder coat for added durability. The equipment has a female threaded connection and adheres to UL 514B standards.

• Hub size: 2-1/2 inches
• Dimensions: length 17.88 inches, width 5.88 inches, height 8 inches
• Material: Malleable iron body with neoprene gasket

Product Highlights

This conduit body serves as a pulling fitting, ideal for heavy and difficult-to-bend conductors. It allows for ninety-degree bends in conduit and is equipped with gasketed covers. The wiring capacity is two hundred ten cubic inches.

Product Information

Standard Information

• Brand: Appleton Electric
• Catalog Number: LBDN250-M

Technical Specifications

• Material: Malleable Iron Body, Neoprene Gasket
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Hub Size: 2-1/2 inches
• Connection: Female Threaded
• Application: For use with rigid metal conduit and IMC
• Standard: UL 514B, UL File Number E2527
• Country of Origin: Mexico
