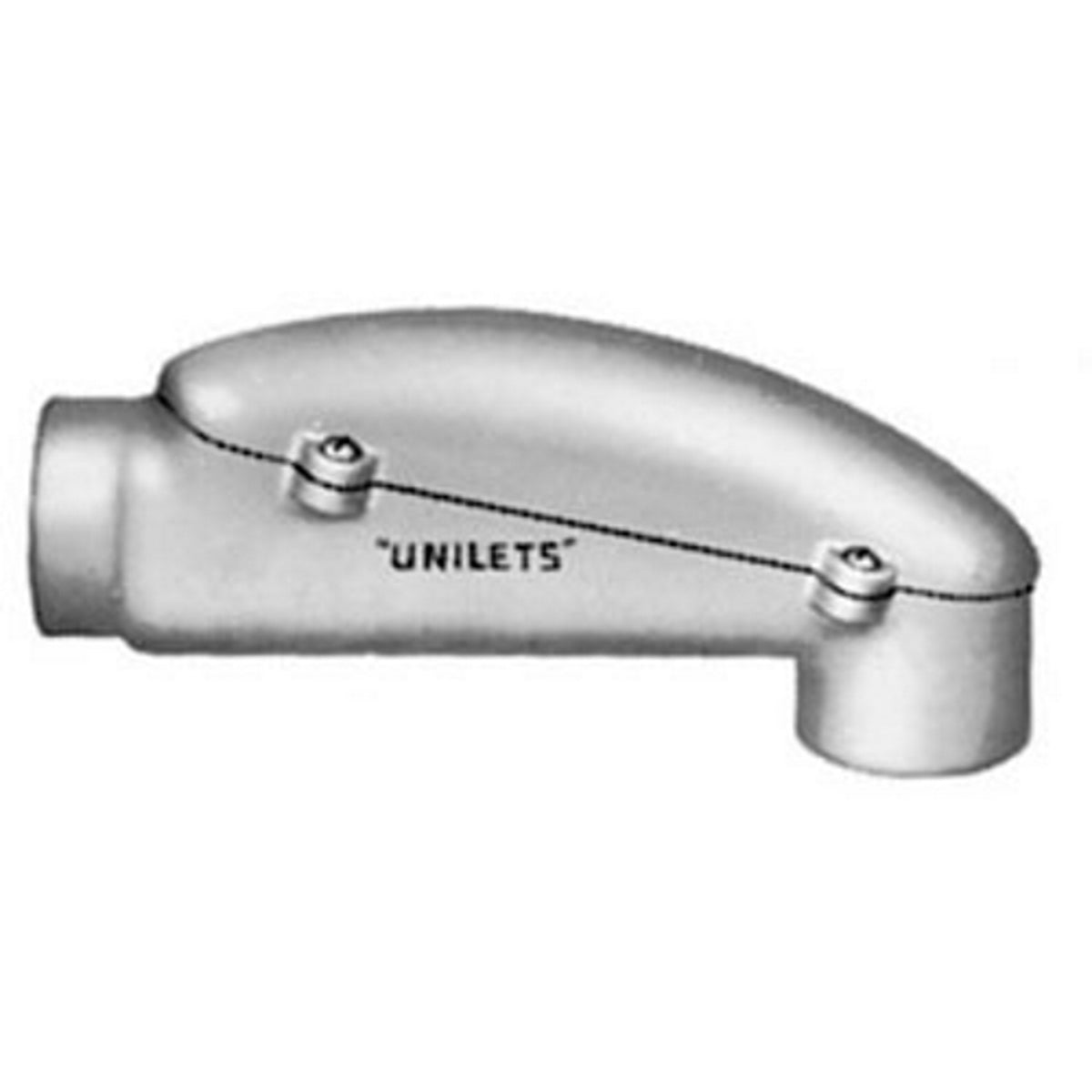

Appleton LBD150-A 1-1/2 Aluminum Lbd-Type Pulling Elbow

Product Description

The Appleton LBD150-A is a conduit body designed for use in electrical fittings. This product features a pulling fitting with cover and gasket, specifically suited for rigid metal conduit and intermediate metal conduit applications. It has a hub size of one and a half inches, allowing for effective connections and bends in conduit systems. The aluminum body and composition fiber gasket provide durability and resistance to various environmental factors.

• Material: Aluminum Body with Fiber Gasket
• Hub Size: One and a Half Inches
• Connection Type: Female Threaded

Product Highlights

This conduit body serves as a pulling fitting, making it ideal for heavy and difficult to bend conductors. The design allows for 90-degree bends and it includes gasketed covers for protection.

Product Information

Standard Information

• Brand: Appleton
• MPN: LBD150-A

Technical Specifications

• Catalog Number: LBD150-A
• Application: For Use With Rigid Metal Conduit and IMC
• Finish: Epoxy Powder Coat
• Length: Twelve and One Fourth Inches
• Width: Four Point Thirteen Inches
• Height: Four Point Eight Eight Inches
• Special Features: Ideal for heavy conductors; Wiring capacity: Sixty-Six Cubic Inches
• Approval: UL 514B, NEC, CEC
