Product Description

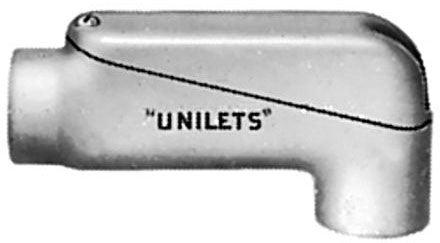

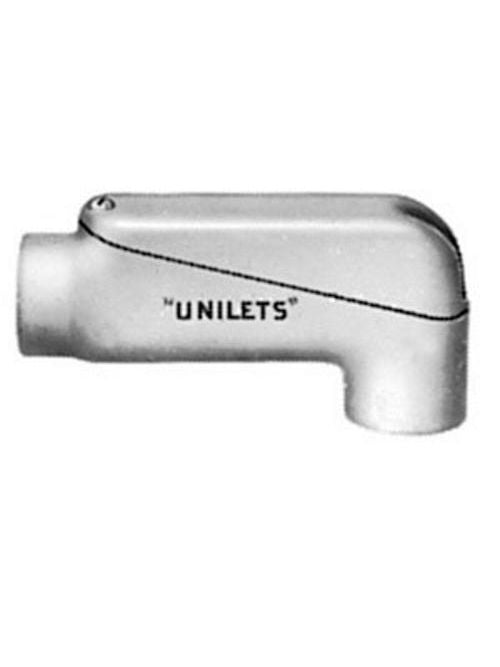

The Appleton LBD100-M is a 1 type LBD pulling fitting with cover and gasket. Its hub size is one inch, with a length of six point thirty-eight inches, width of one and three-quarter inches, and height of two point sixty-nine inches. The product is constructed from malleable iron with a composition fiber gasket. It features a triple-coat finish that includes zinc electroplate, chromate, and epoxy powder coat.
- Hub Size: 1 inch
- Material: Malleable Iron Body with Fiber Gasket
- Connection Type: Female Threaded
Product Highlights
This product is designed to be used with rigid metal conduit and intermediate metal conduit (IMC).
Product Information
Standard Information
-
Catalog Number: LBD100-M
-
Manufacturer: Appleton Electric
Technical Specifications
-
Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
-
Weight: 2.39 lbs
-
Length: 6.38 inches
-
Width: 1.75 inches
-
Height: 2.69 inches
-
Hub Size: 1 inch
-
Material: Malleable Iron Body, Composition Fiber Gasket
-
Application: For Use With Rigid Metal Conduit And IMC
-
Connection: Female Threaded
-
Standard: UL 514B, UL File Number E2527
