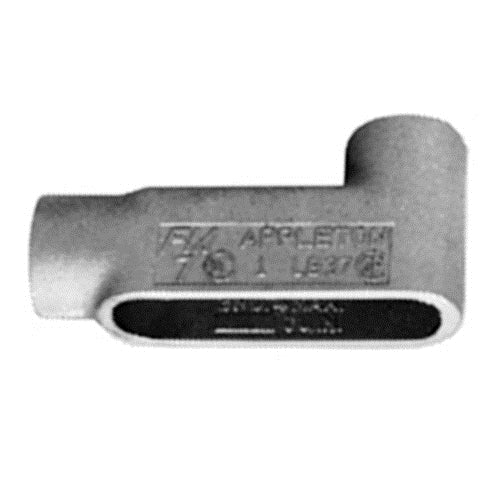

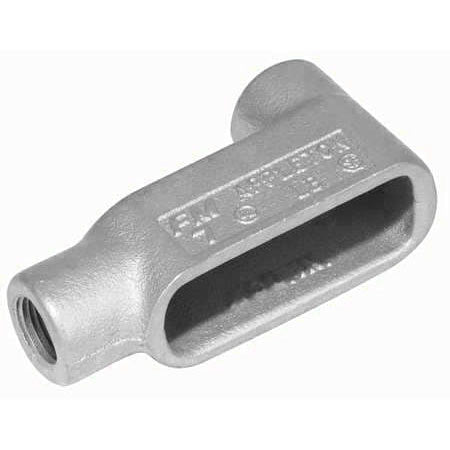

Appleton LB87 Type LB Conduit Outlet Body 3 in Hub 126 cu-in Aluminum Enamel/Zinc Electroplated

Product Description

The Appleton LB87 Type LB Conduit Outlet Body, MPN LB87, is designed for use in rigid and IMC conduit applications. It features a flat back design that maximizes wiring capacity and allows for easy surface mountings.

• Flat back design for greater wiring capacity and surface mountings.
• Interchangeable with other manufacturers' Form 7 conduit bodies.
• Internal volume and maximum wire capacity marked on the casting.

Product Highlights

Professional-grade conduit body suitable for installation in wet locations when used with gasketed covers.

Product Information

Standard Information

• Type: LB Conduit Outlet Body
• Brand: Appleton

Technical Specifications

• Application: Rigid/IMC Conduit Applications
• Capacity: 126 cu-in
• Color: Gray
• Connection Type: Tapered FNPT
• Country of Origin: MX
• Dimensions: 10-1/2 in L x 4-1/4 in W x 5-7/8 in H
• Enclosure: NEMA FB-1/FB-2.10
• Finish: Aluminum Enamel/Zinc Electroplated
• Form: 7
• Hub Size: 3 in
• Material: Grayloy Iron
• Mfg Standards/Approvals: ARRA Compliant | UL 514A File No. E18095 | C22.2 No. 18/009795 Certified | Federal Specification A-A-50563 | Hazardous Locations Class 1, Div 2, Per NEC Section 501-4(B)
• Mounting Type: Surface
• Number of Hubs: 2
• Package Height: 6.1 in
• Package Length: 11.1 in
• Package Weight: 9.69 lb
• Package Width: 8.1 in
