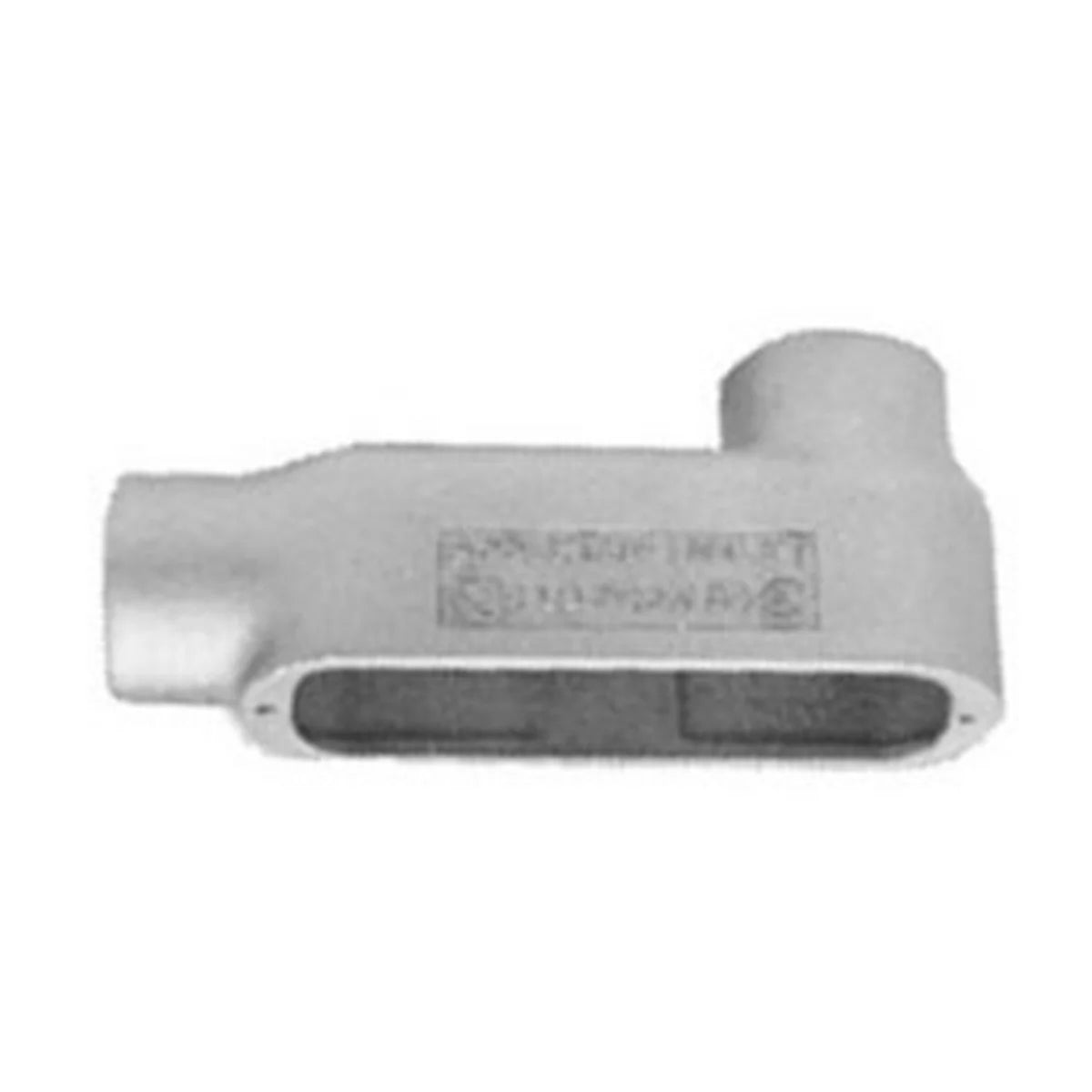

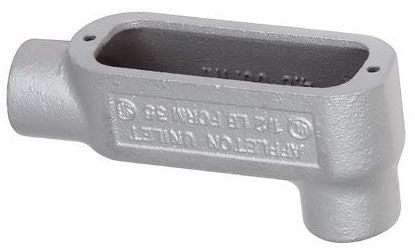

Appleton LB75-M Unilet Form 35 Type LB Conduit Body; 3/4 In

Product Description

The Appleton LB75-M Unilet Form 35 Type LB Conduit Body is designed for use with rigid steel and aluminum conduit. This item is made from durable malleable iron and features a tapered female thread connection. It is suitable for installations requiring high corrosion resistance and impact durability.

• Material: Malleable Iron
• Hub Size: 3/4 Inch
• Length: 5.38 Inch, Height: 2.31 Inch

Product Highlights

The conduit body serves as a junction point in conduit systems, offering multiple hubs for wiring connections. It simplifies the installation process by allowing access for splicing and maintenance. This product helps in managing conduit bends and turns effectively.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: LB75-M
• Application: For Use With Rigid Steel, Rigid Aluminum Conduit and IMC
• Connection: Tapered Female Threaded
• Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)
• Standard Approvals: UL 514A, UL 514B, CSA C22.2 No. 18.3
• Wiring Capacity: 7.5 CU-IN as per NEC 314.16(A)
