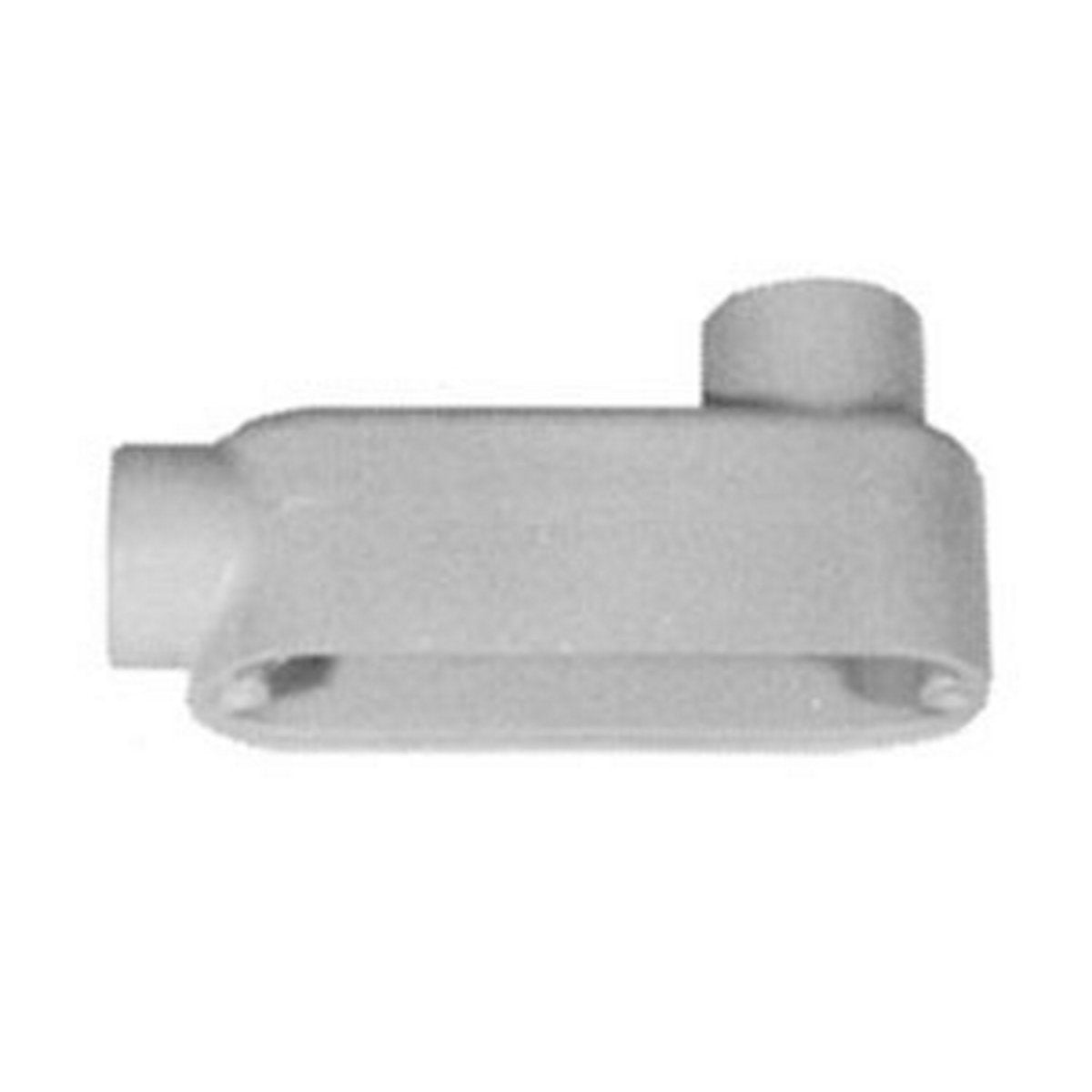

Appleton LB75-A BODY OUT CONDUIT 3/4IN 2 7CU-IN

Product Description

The Appleton LB75-A is a conduit outlet body designed for electrical installations. This product features a hub size of three-fourths inches and has a capacity of seven cubic inches. The body is made from pressure cast aluminum with an epoxy powder coat for corrosion resistance. The tapered female threaded connection ensures a tight fit.

• Hub size: 3/4 inch
• Material: Pressure cast aluminum
• Capacity: 7 cubic inches

Product Highlights

This conduit body connects and changes the direction of conduit runs. It allows for convenient access for maintenance and splicing.

Product Information

Standard Information

• Brand: Appleton
• MPN: LB75-A

Technical Specifications

• Dimensions: 5.13 inches length x 2.44 inches height
• Number of Hubs: 2
• Connection Type: Tapered FNPT
• Finish: Epoxy powder coat
• Form: 85
• Enclosure Rating: NEMA FB-1
• Application: For Rigid Steel, Rigid Aluminum, IMC and EMT conduit
• Standards: UL 514A, UL 514B, CSA C22.2
