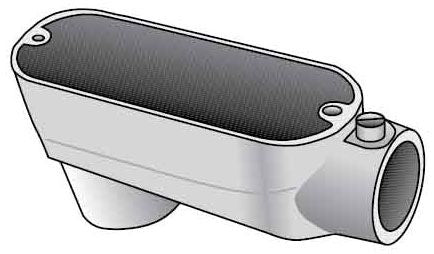

Appleton LB50ATW 1/2 in Aluminum Lb Emt Conduit Body

Product Description

The APPLETON LB50ATW is a 1/2 inch LB-style conduit body designed for use with electrical metallic tubing (EMT) systems. Constructed from aluminum, this conduit body provides a 90-degree change of direction in a conduit run while also serving as an access point for wire pulling, splicing, or inspection. It is a standard component in commercial and residential electrical installations and is typically installed by licensed electricians. The LB configuration features a back-entry and bottom-exit arrangement, making it well suited for routing conduit from a wall into a panel or enclosure.

This conduit body is used in EMT conduit systems where a 90-degree turn is required along a run. It fits 1/2 inch EMT conduit and is appropriate for both indoor and outdoor electrical rough-in work. The aluminum construction keeps weight low and provides corrosion resistance in a range of installation environments. Electricians will find this body useful in panel feed runs, service entrance work, and general branch circuit routing where a removable cover is needed for wire access.

Key Features

• LB configuration provides a 90-degree direction change with rear-entry and bottom-exit ports
• Aluminum construction offers corrosion resistance and reduced weight
• Removable cover allows access for wire pulling and inspection
• Designed for use with 1/2 inch EMT conduit systems
• Compact form factor suits tight installation spaces

Compatibility

Designed as an OEM-style replacement and standard-fit conduit body for 1/2 inch EMT conduit systems in commercial and residential electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits before working on the conduit system. Secure all conduit connections firmly before pulling wire through the body. Do not exceed the fill capacity of the conduit body as defined by NEC Chapter 9 tables.

Technical Specifications

• Conduit Size: 1/2 inch
• Conduit Type: EMT
• Body Style: LB
• Material: Aluminum
• Package Dimensions (L x W x H): 7.6 inches x 6.0 inches x 0.41 inches
• Weight: 0.29 pounds
• UPC: 78312632941

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: LB50ATW
