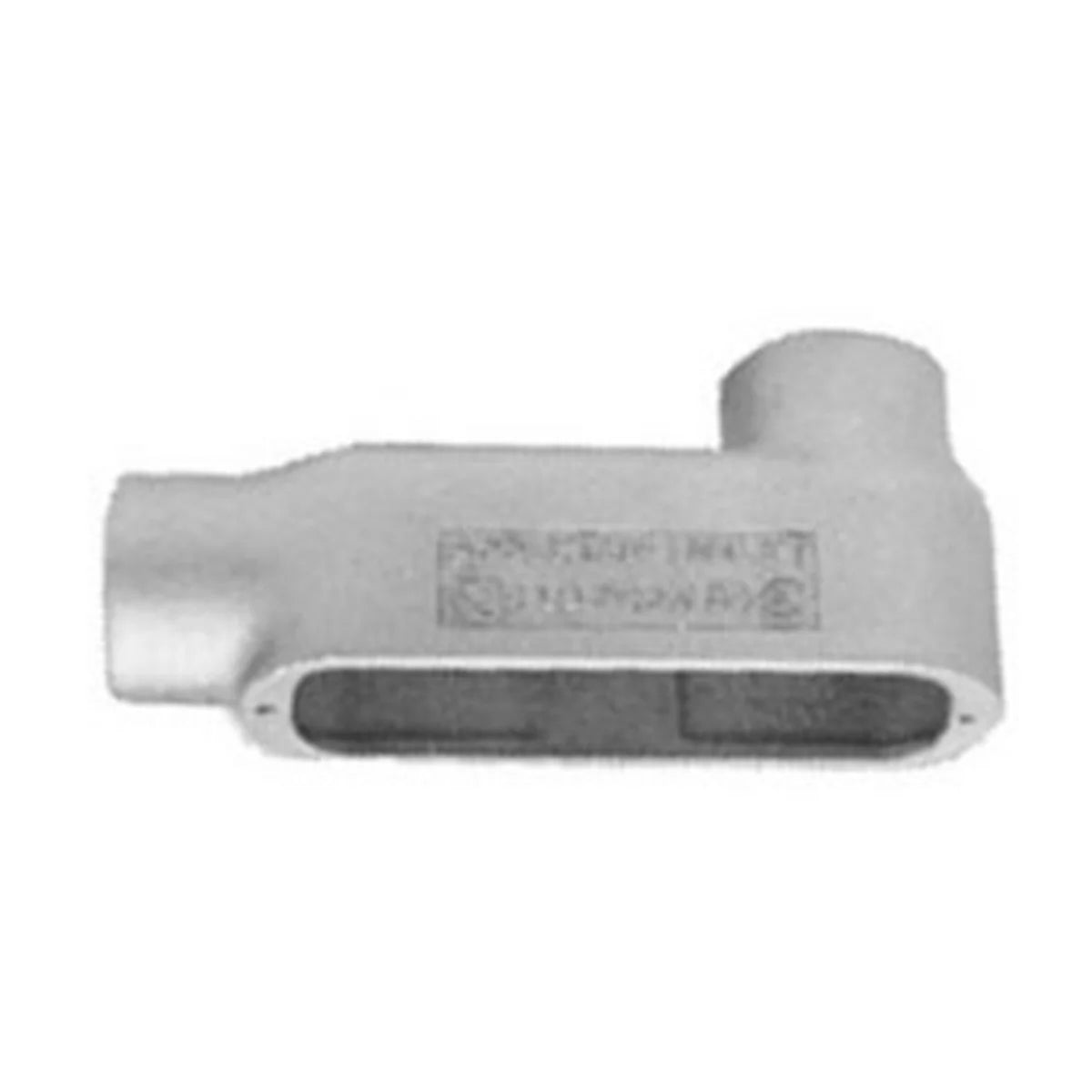

Appleton LB50-M Unilet Form 35 Type LB Conduit Body; 1/2 In

Product Description

The Appleton LB50-M is a conduit body designed for use with rigid steel and aluminum conduit systems. This unit features a hub size of one-half inch and is constructed from malleable iron with a durable three-coat finish that includes zinc electroplating, chromate, and epoxy powder coating. It is ideal for changing direction, maintaining access to conductors, and provides openings for splicing.

• Hub Size: half inch
• Length: four point six three inches
• Height: two point one three inches

Product Highlights

This conduit body is designed with tapered female threads for secure connection and complies with various standards including UL 514A and CSA C22.2.

Product Information

Standard Information

• Brand: Appleton Electric
• Manufacturer Part Number: LB50-M

Technical Specifications

• Material: Malleable Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)
• Application: For use with rigid steel, rigid aluminum conduit, and IMC
• Connection: Tapered Female Thread
• UPC: 781381475808
• Catalog Number: LB50-M
• Hub Size: 1/2 Inch
• Form Type: Form 35
• Country of Origin: Mexico
• Model: LB
• Access Opening: Back
