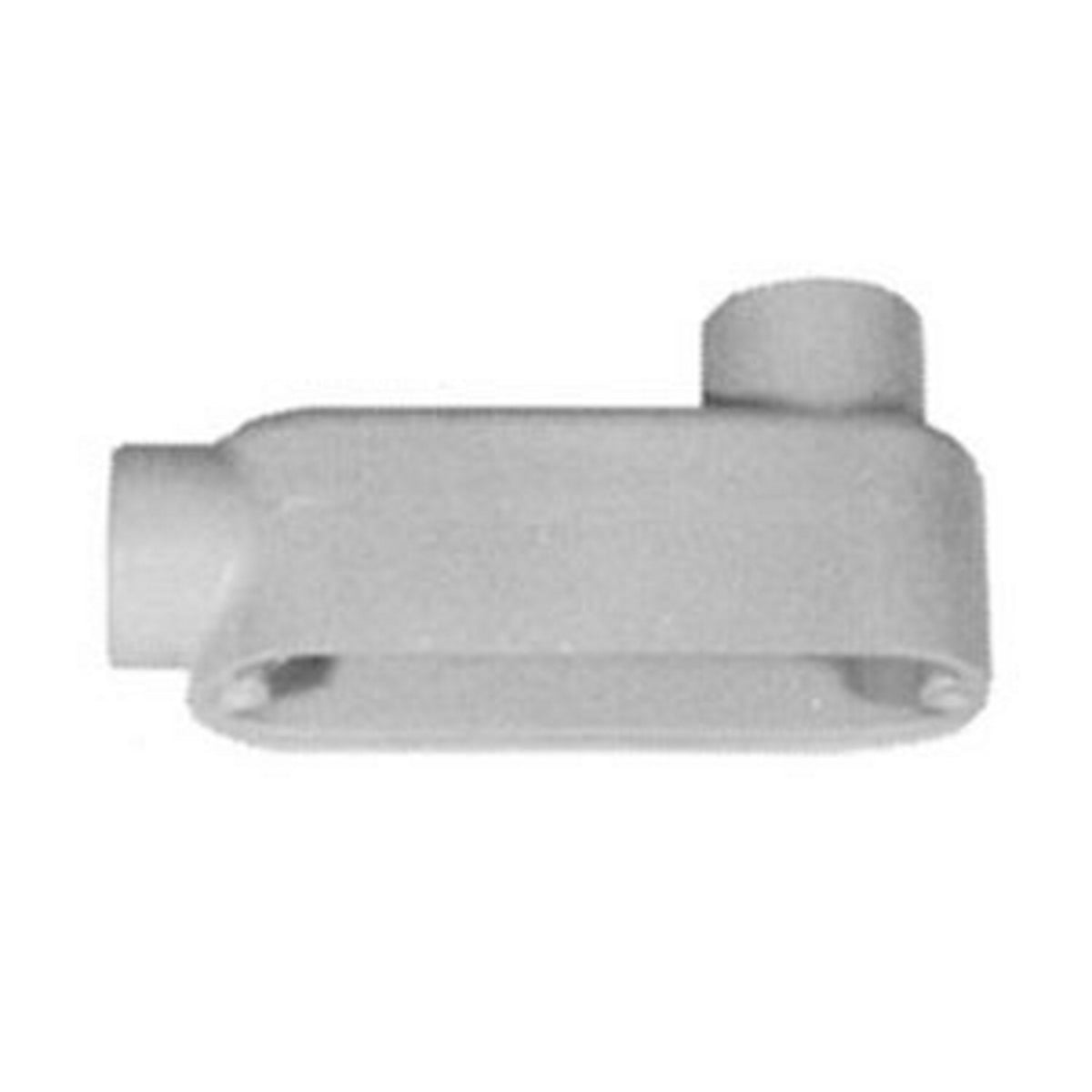

Appleton LB50-A Conduit Outlet Body Type LB 1/2 Inch Hub 2 Hubs 4 Cubic Inch Replacement MPN

Product Description

The Appleton LB50-A is a conduit outlet body designed for use with rigid steel and aluminum conduits. It features two hubs and a half-inch hub size. Made from pressure cast aluminum, this product meets multiple standards and is suitable for various applications including pulling, splicing, and changing the direction of conduit runs.

• Capacity: Four cubic inches
• Hub size: Half-inch with tapered female threads
• Meets standards: UL 514A, UL 514B, CSA C22.2, NEMA FB-1

Product Highlights

This conduit outlet body is ideal for installations in commercial and industrial settings. It ensures easy access to conductors for maintenance and is designed for durability.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Material: Pressure cast aluminum

Technical Specifications

• Length: 4.31 inches
• Height: 2.06 inches
• Connection Type: Tapered female threaded
• Finish: Epoxy powder coat
• Country of Origin: India
• Number of Hubs: 2
• Form Type: 85
• Application: Rigid steel, rigid aluminum conduit, IMC, and EMT
